Grey High Efficiency 1.6 W/MK Thermal Insulation Materials For Automotive Control Units

Grey High Efficiency 1.6 W/MK Thermal Insulation Materials For Automotive Control Units

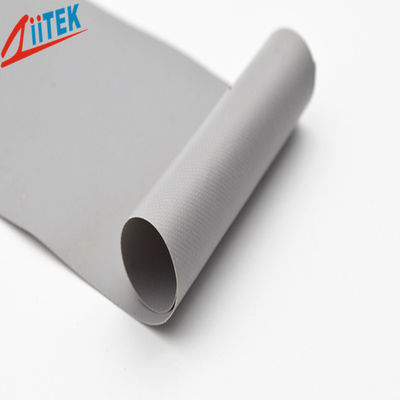

Large Image :  Grey High Efficiency 1.6 W/MK Thermal Insulation Materials For Automotive Control Units

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TIS808
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 0.1-10 USD/PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3Word days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detailed Product Description
Product Name: Grey High Efficiency 1.6 W/MK Thermal Insulation Materials For Automotive Control Units Hardness: 65 Shore A
Thermal Conductivity: 1.6W/mK Continuos Use Temp: -45 To 180℃
Color: Gray Dielectric Constant: 5.5 MHz
Keywords: Thermal Insulation Pad Thickness Range: 0.203mm
Highlight:

heat insulation materials

,

thermal insulator materials

,

Thermal Insulation Materials Grey

Grey High Efficiency 1.6 W/MK Thermal Insulation Materials For Automotive Control Units



The TISTM800 Series is acomposite of silicone rubber and fiberglass. The material is flame retardant and is specially formulated for use as a thermakky conductive insulator,The primary use for TISTM800 is to electrically isolate power sources from heat sinks.TISTM800 has excellent mechanical and physical characteristics.Surfaces are pliable and allow complete surface contact with excellent heat.


Features



> Soft and High thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


>  Power conversion equipment
>  Power semiconductors:To packages, MOSFETs & IGBTs
>  Audio and Video components
>  Automotive control units
>  Motor controllers
>  General high pressure interface



Typical Properties of TIS™806 Series
Product Name TISTM806 Test Method
Color Gray Visual
Construction &Compostion Ceramic filled silicone elastomer /Fiberglass *****
Thickness range 0.152mm ASTM D751
Specific Gravity 2.2 g/cc ASTM D297
Hardness 65 Shore A ASTM 2240
Tensile Strength > 1500 psi ASTM D412
Continuos Use Temp -45 to 180℃ *****
Dielectric Breakdown Voltage >1500 VAC ASTM D149
Dielectric Constant @ 1MHz 5.5 ASTM D150
Volume Resistivity ≥1.0X1012 Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 1.6 W/mK ASTM D5470
1.6W/mK ISO22007-2



Product Thicknesses
TIS 805: 0.127mm
TIS 806: 0.152mm
TIS 808: 0.203mm
TIS 810: 0.254mm
TIS 812: 0.304mm
TIS 818: 0.457mm


Product Sizes
8" x 160" (203mm x 48.76M)

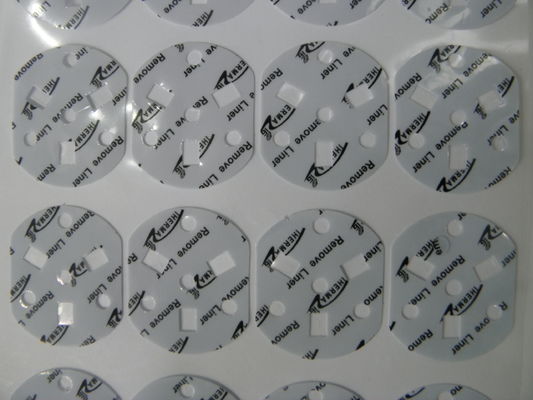

Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.

Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

Grey High Efficiency 1.6 W/MK Thermal Insulation Materials For Automotive Control Units 0
