Black Thermal Conductivity 1.8W/M-K Nylon Thermal Conductive Plastic For Heat Dissipation Housing For LED Bulbs And Spotlights

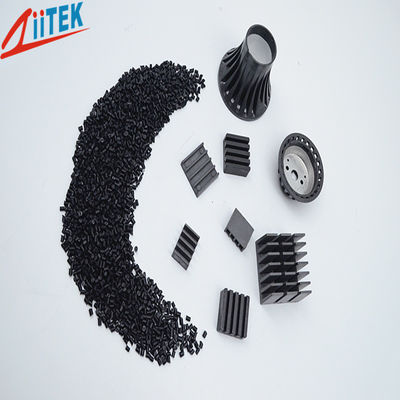

Large Image : Black Thermal Conductivity 1.8W/M-K Nylon Thermal Conductive Plastic For Heat Dissipation Housing For LED Bulbs And Spotlights

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TCP200-18-02A

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Price:	0.1-10 USD/PCS
Packaging Details:	25KG/Bag
Delivery Time:	3-7 Working days
Payment Terms:	T/T
Supply Ability:	1000KG/day

Contact Now

Detailed Product Description

Prodcuts Name:	Black Thermal Conductivity 1.8W/M-K Nylon Thermal Conductive Plastic For Heat Dissipation Housing For LED Bulbs And Spotlights	Color:	Black
Thermal Conductivity（Through-plane）:	1.8W/mK	Construction:	Nylon
Heat Deflection Temperature (°C):	180℃	Density(g/cm³）:	1.45
Dielectric Breakdown Voltage (V/mm):	≥5500	Dielectric Constant @1MHz:	2.5
Keywords:	Thermal Conductive Plastic
Highlight:	thermal conductivity plastic , heat conducting plastic

Black Thermal Conductivity 1.8W/M-K Nylon Thermal Conductive Plastic For Heat Dissipation Housing For LED Bulbs And Spotlights

Products description

TCP^®200-18-02A is made by uniformly dispersing thermally conductive fillers in a polymer matrix, successfully combining the excellent mechanical properties and processing convenience of engineering plastics with active heat dissipation capabilities. Compared to ordinary plastics, it can transfer and distribute heat more effectively; compared to metals,it has advantages such as being lightweight, electrically insulating, corrosion-resistant, and offering a high degree of design flexibility.

Features

>Even heat dissipation, preventing hotspots and reducing local deformation of parts due to high temperatures
>Lightweight, lighter than aluminum
>Easy to mold and process, no secondary processing required
>High flexibility in product design

Applications

>Heat dissipation housing for LED bulbs and spotlights, light engine substrates
>Insulation brackets and housings for batterymanagement systems
>Housings for charging equipment
>Insulation brackets and sensor housings for motordrivers,electrical junction boxes

Typical Properties of TCP^®200-18-02A
Property	Value	Test Method
Color	Black	Visual
Construction	Nylon	—
Melt Index (g/10min)	150	ASTM D1238
Density (g/cm³)	1.45	ASTM D792
Shrinkage (%)	0.3~0.5	ASTM D955
Tensile Strength (MPa)	55	ASTM D638
Flexural Strength (MPa)	70	ASTM D790
Flexural Modulus (MPa)	9000	ASTM D790
Notched Izod Impact (KJ/m²)	4.5	ASTM D256
Dielectric Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @1MHz	2.5	ASTM D150
Volume Resistivity (Ohm·cm)	8.0x10¹²	ASTM D257
Heat Deflection Temperature (℃)	180	ASTM D648
Vicat Temperature (℃)	170	ASTM D648
Thermal Conductivity (Through-plane)(W/m:K)	1.8	ASTM D5470
Flame Retardant Rating	V-0	UL94 (E331100)

Product Specifications

TCP^®200 is provided in polyethylene granular bag,each containing 25 Kilograms.
If you would like to learn about products in different specifications,please contact our company.
If you want to learn more about thermal conductive materials,please visit our company's website.
