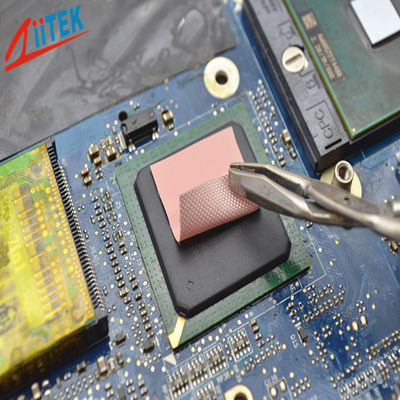

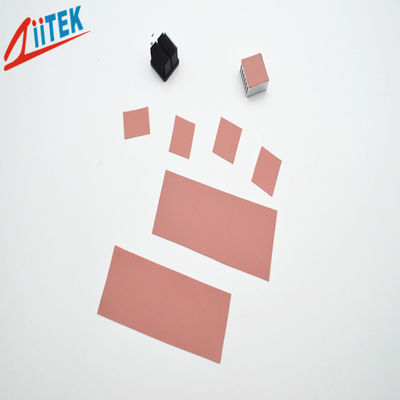

1.0W/MK Silicone Thermal Insulation Materials -50 To 180℃ Pink For Automotive Control Units

1.0W/MK Silicone Thermal Insulation Materials -50 To 180℃ Pink For Automotive Control Units

Large Image :  1.0W/MK Silicone Thermal Insulation Materials -50 To 180℃ Pink For Automotive Control Units

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TIS109-02
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3Word days
Supply Ability: 100000PCS/Day
Detailed Product Description
Products Name: 1.0W/MK Silicone Thermal Insulation Materials -50 To 180℃ Pink For Automotive Control Units Color: Pink
Dielectric Constant: 5.5 MHz Specific Gravity: 1.751g/cc
Continuos Use Temp: -45 To 180℃ Hardness: 50 Shore A
Fire Rating: 94-V0 Keywords: Thermal Insulation Materials
Highlight:

heat insulation materials

,

thermal insulator materials

,

1.0W/mK Thermal Insulation Materials

1.0W/MK Silicone Thermal Insulation Materials -50 To 180℃ Pink For Automotive Control Units



The TISTM109-02  products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.


Features


> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface



Typical Properties TIFTM112-02 Series
Color Pink Visual
Construction & Composition Ceramic filled silicone elastomer/ Fiberglass ******
Thickness range 0.3mm ASTM D374
Specific Gravity 1.751 g/cc ASTM D297
Hardness 50 Shore A
Tensile Strength 425 Kpsi ASTM D412
Continuous Use Temperature -45~180℃ ******
Dielectric breakdown voltage >3500VAC ASTM D149
Dielectric Constant@1MHz 5.5 MHz ASTM D150
Volume Resistivity 4.0*103 Ohm-cm ASTM D257
Thermal Conductivity 1.0W/mk ISO22007.2.2
Flame Rating 94 V0 UL E331100

Standard Thicknesses:

0.009"(0.228mm) 0.012"(0.304mm) 0.018"(0.457mm)

Consult the factory alternate thickness.



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.



Standard Sizes:

12"x 160'(304mm x 48.76M)

lndividual die cut shapes can be supplied.
