Thickness: | 0.15~0.5mmT | Specific Gravity: | 2.2 G/cc |
---|---|---|---|
Tensile Strength: | 1.75 | Continuos Use Temp: | 450 Psi |
Thermal Conductivity: | 1.6W/mK | Volume Resistivity: | 5.0X10" Ohm-meter |
High Light: | heat insulation materials,thermal insulator materials,2.2 g/cc Interface thermal Insulation Materials |

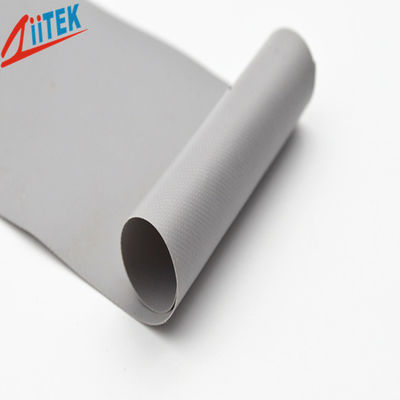

General High Pressure 2.2 g/cc Interface thermal Insulator Materials 0.15~0.5mmT 1.6W For Motor Controllers 2.2 g/cc
The TIS™812 products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
TIS800 Series Datasheet-(E)-REV01.pdf
Features
> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications
> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface
Typical Properties of TIS™812 | ||||||
Product Name | TISTM806 | TISTM808 | TISTM810 | TISTM812 | TISTM818 | Test Method |
Color | Gray | Gray | Gray | Gray | Gray | Visual |
Construction & Compostion |
Ceramic filled silicone rubber | *** | ||||
Composite Thickness |
0.006"/0.152 mm |
0.008"/0.203mm | 0.010"/0.254mm | 0.012"/0.304mm | 0.018"/0.457mm | ASTM D751 |
Specific Gravity | 2.2 g/cc | ASTM D297 | ||||
Heat Capacity | 1 l/g-K | ASTM C351 | ||||
Hardness | 50 Shore A | ASTM 2240 | ||||
Tensile Strength | 450 psi | >600 psi | >600 psi | >600 psi | >600 psi | ASTM D412 |
Continuos Use Temp | (-58 to 356℉) / (-50 to 180℃) | *** | ||||
Electrical | ||||||
Dielectric Breakdown Voltage | >1500 VAC | >3500 VAC | >5000 VAC | >5000 VAC | >5000 VAC | ASTM D149 |
Dielectric Constant | 5.5 MHz | ASTM D150 | ||||
Volume Resistivity |
5.0X10" Ohm-meter | ASTM D257 | ||||
Fire rating | 94 V0 | equivalent UL | ||||
Thermal | ||||||
Thermal conductivity | 1.6 W/m-K | ASTM D5470 | ||||
Thermal Impedance @50psi |
0.21℃-in²/W | 0.35℃-in²/W | 0.82℃-in²/W | 1.23℃-in²/W | 1.83℃-in²/W | ASTM D5471 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.
Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)

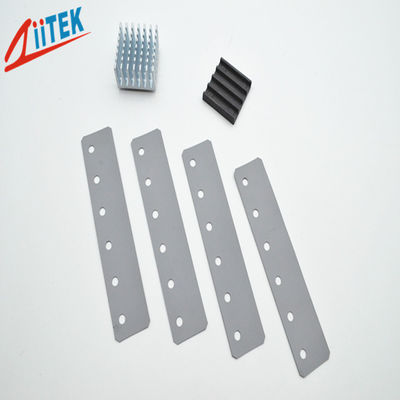

Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Reinforcement:
TIS™ series sheets are fiberglass reinforced.
