Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃

Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃
Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃ Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃ Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃ Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃

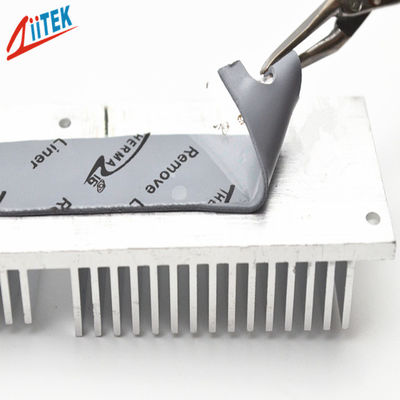

Large Image :  Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF1100-15-10S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Fire Rating: 94 V0 Volume Resistivity: 4.0X10" Ohm-meter
Dielectric Breakdown Voltage: >10000 VAC Dielectric Constant: 5.5 MHz
Construction & Compostion: Ceramic Filled Silicone Rubber Continuos Use Temp: -50 To 200℃
High Light:

thermal conductive material

,

cpu thermal pad

,

1.5 W/mK silicone thermal conductive pad

Naturally tacky 1.5 W/mK silicone thermal conductive pad TIF1100-15-10S 45 shore00 for LED controller -50 to 200℃



  The TIF1100-15-10S is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling



Features:



UL recognized 1.5 W/mK
Fiberglass reinforced for puncture, shear and tear resistance3 W/mK
Easy release construction
Electrically isolating
High durability


Applications:



IT infrastructure
GPS navigation and other portable devices
CD-Rom, DVD-Rom cooling
LED Power Supply
LED Controller
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters




Typical Properties of TIF1100-15-10S Series
Color

Light Gray

Visual Composite Thickness  hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm

0.55

20mils / 0.508 mm

0.82

Specific Gravity

2.10 g/cc

ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11

Heat Capacity

1 l/g-K

ASTM C351

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45

Hardness
 45
(Shore 00)
ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05

Continuos Use Temp

-50 to 200℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
>1500~>5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56

Dielectric Constant
5.5 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77

Volume Resistivity
4.0X10"
Ohm-meter
ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98

Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14

Thermal conductivity
1.5 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Standard Thicknesses:

0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
