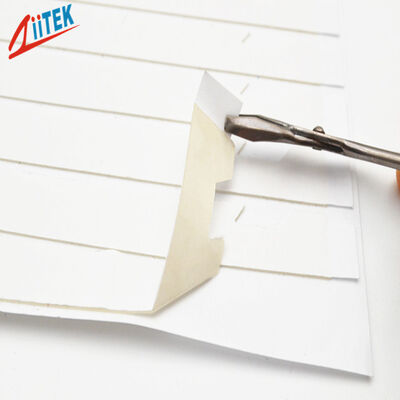

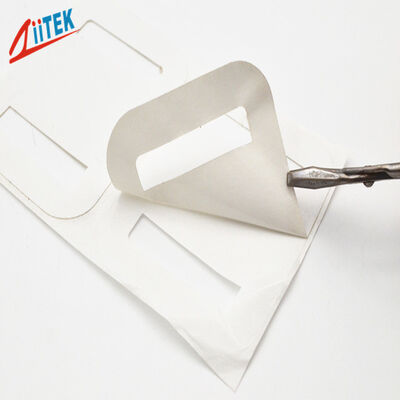

Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape
The TIA®815 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.
Features
> Thermal Conductivity 0.8W/mK.
> High bond strength to a variety of surfaces
> Double sided pressure sensitive adhesive tape.
> High performance, thermally conductive acrylic adhesive
> Allow for good conformability to irregular surfaces and good electrical isolation
> Easy Application
> Eliminates need for external hardware (screws, clips, etc.)
> Available with easy release tabs
Applications
> Mount heat sink onto BGA graphic processor or drive processor.
> Mount heat spreader onto power converter PCB or onto motor control PCB
> Can be used instead of heat cure adhesive,screw mounting or clip mounting
> Heat sink onto BGA graphic processor
> Heat sink to computer processor
> Heat sink onto drive processor
> LED Power Supply
> LED Controller
> LED Lights
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power Supply
> Waterproof LED Power Supply
> Piranha wroof and common lED module
> LED module for Channelletters
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight
| Typical Properties of TIA®800 Series |
| Product Name |
TIA®802 |
TIA®804 |
TIA®806 |
TIA®808 |
TIA®810 |
TIA®812 |
TIA®815 |
Test Method |
| Color |
White |
Visual |
| Adhesive Type |
Acrylic Adhesive |
****** |
| Continuous Use Temp |
-40℃ to 125℃ |
****** |
| Thickness |
0.002" 0.05mm |
0.004" 0.10mm |
0.006" 0.15mm |
0.008" 0.20mm |
0.010" 0.25mm |
0.012" 0.30mm |
0.015" 0.38mm |
ASTM D374 |
| Voltage Breakdown |
≥600 |
≥1200 |
≥1800 |
≥2500 |
≥2700 |
≥3000 |
≥4000 |
ASTM D149 |
| Thermal Conductivity |
0.8 W/mK |
ASTM D5470 |
| 180° Peel Adhesion (gf/inch) Steel, Immediate |
≥ 1200 |
ASTM D3330 |
| 180° Peel Adhesionk (gf/inch) Steel, 24 hrs |
≥ 1400 |
ASTM D3330 |
| Holding Power (H/inch) @25℃ |
≥ 48 Hours |
ASTM D3654 |
| Holding Power (H/inch) @80℃ |
≥ 48 Hours |
ASTM D3654 |
Product Specifications
Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)
Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.
The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
Company profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
