Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIE™ 280-15AB
Payment & Shipping Terms:
Minimum Order Quantity: 2kg/LOT
Packaging Details: 1kg/can
Delivery Time: 2-3 work day
Supply Ability: 1000KG
Detailed Product Description
Viscosity @25℃: 4,000 CPs Working Pot Life (250 G @25℃): 45 Min
Glass Transition Temperature Tg: 92℃ Elongation: 0.10%
Thermal Conductivity: 1.5W/m-K Dielectric Strength: 300 Volts / Mil
High Light:

heat conductive glue

,

thermal adhesive glue

,

1.5W / mK Thermal Conductive Glue

Non toxic 1.5W / mK epoxy adhesive paste Thermal Conductive Glue 4000 CPs 300 volts/m For Automotive Starters Potting



Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

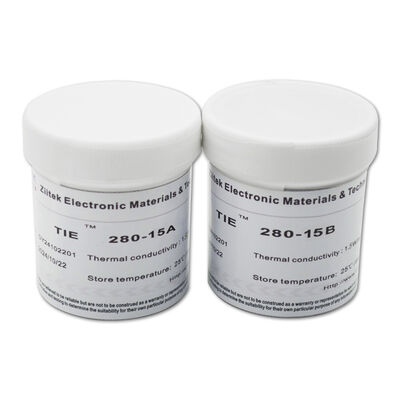

TIE™ 280-15AB is a two compound, high thermal conductive, low temperature cured, long pot life, fire resistant epoxy encapsulant compound. It is design for potting of capacitors and electrical devices.



 Features



Good thermal conductive: 1.5W/mK

Excellent insulation and smoothly sourface.

Low shrinkage

Low viscosity, expediting air releaseed.

Excellent in solvents and water proof.

Longer life time.

Excellent thermal shock efficiecy and impact resistance



 Application

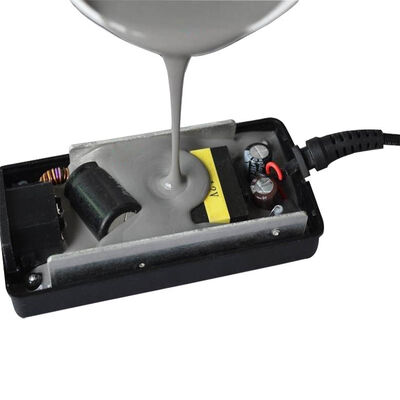

Automotive starters potting; General potting Thermal detector potting

Ferrite adhesion; TIP type LED; Good adhesion to aromatic polyester

Relay sealant; Good adhesion to rubber, ceramics PCB and plastics

Power transformers and coils; Potting capacitors Potting of small electrical devices

Adhesion to metal glass and plastic LCD & substrates adhesion; Coating and sealant; Coil ; IGBTS; Transformer; Fire retardant

Optical / medical component adhesive




Typical Uncured Material TIE™ 280-25A (Resin)
Color  Black
Viscosity@25℃ Brookfield  3,000 cPs
Specific Gravity  2.1 g/cc
Shelf life @25℃ in sealed container  12 months
TIE™ 280-25B (Hardener)
Color  Black
Viscosity@25℃ Brookfield  5,000 cPs
Shelf life @25℃ in sealed container  12 months n





Mix Ratio (By weight)                                                                                                         TIE™ 280-12A : TIE™ 280-12B = 100 : 100
Viscosity @25℃ 4,000 cPs
Working pot life (250 g @25℃)  45 min
Specific Gravity  2.1g/ccn
Cure Schedule
Cure 12 hours at 25℃
Cure 30 minutes at 70℃





Cured Properties
Hardness @25℃ 85 Shore D
Service temperature -40℃ to +130℃
Glass transition temperature Tg   92℃
Elongation 0.10%
Coefficient of thermal expansion, / ℃ 3.0 X 10-5
Fire resistance UL Meet 94 V-0
Moisture absorption % wt gain 24 hours water immersion @25℃ 0.1





Thermal
Thermal Conductivity  1.5 W/m-K
Thermal Impedance @10psi 0.31 ℃-in²/W
ELECTRICAL AS CURED
Dielectric Strength 300 volts / mil
Dielectric Constant 4.2 MHz
Dissipation factor 0.029 MHz
Volume resistivity, ohm-cm @ 25℃ 3.0 X 1012



Non toxic 1.5W / mK epoxy adhesive paste Thermal Conductive Glue 4000 CPs 300 volts/m For Automotive Starters Potting 0
