Ultra Thin Thermal Insulation Materials For Motor Controllers And Power Conversion Equipment

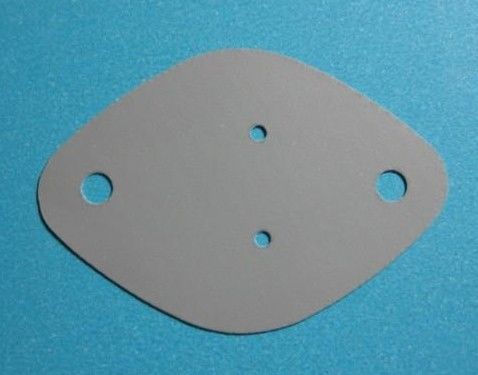

Large Image : Ultra Thin Thermal Insulation Materials For Motor Controllers And Power Conversion Equipment

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS806

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-7working days
Payment Terms:	T/T
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Product Name:	Ultra Thin Thermal Insulation Materials For Motor Controllers And Power Conversion Equipment	Construction & Compostion:	Ceramic Filled Silicone Elastomer/ Fiberglass
Specific Gravity:	2.23 G/cc	Continuos Use Temp:	-45 To 180℃
Thermal Conductivity:	1.6W/mK	Thickness Range:	0.127mm~0.457mm
Keywords:	Thermal Insulation Materials
Highlight:	thermal insulation pads , thermal insulator materials , Ultra Thin Thermal Insulation Materials

Ultra Thin Thermal Insulation Materials For Motor Controllers And Power Conversion Equipment

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

The TIS^TM800 Series is acomposite of silicone rubber and fiberglass. The material is flame retardant and is specially formulated for use as a thermakky conductive insulator,The primary use for TIS800 is to electrically isolate power sources from heat sinks.TIS 80o has excellent mechanical and physical characteristics.Surfaces are pliable and allow complete surface contact with excellent heat.

Features

> Soft and High thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications

> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

Typical Properties of TIS™806 Series
Product Name	TIS^TM806	Test Method
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer /Fiberglass	*****
Thickness range	0.152mm	ASTM D751
Specific Gravity	2.2 g/cc	ASTM D297
Hardness	65 Shore A	ASTM 2240
Tensile Strength	> 1500 psi	ASTM D412
Continuos Use Temp	-45 to 180℃	*****
Dielectric Breakdown Voltage	>1500 VAC	ASTM D149
Dielectric Constant @ 1MHz	5.5	ASTM D150
Volume Resistivity	≥1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	1.6 W/mK	ASTM D5470
Thermal conductivity	1.6W/mK	ISO22007-2

Product Thicknesses
TIS 805:0.127mm
TIS 806:0.152mm
TIS 808:0.203mm
TIS 810:0.254mm
TIS 812:0.304mm
TIS 818:0.457mm

Product Sizes
8" x 160(203mm x 48.76M)

Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.

Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from open fire and away from

direct sunlight.
For detailed method, please refer to the product material safety data sheet.
