0.3mm Thickness IGBT Heatsink white Thermal Adhesive Tape With Glass Fiber Backing Acrylic

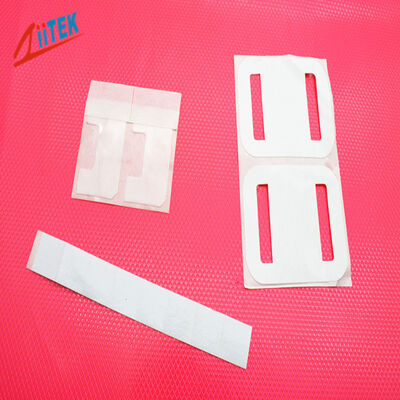

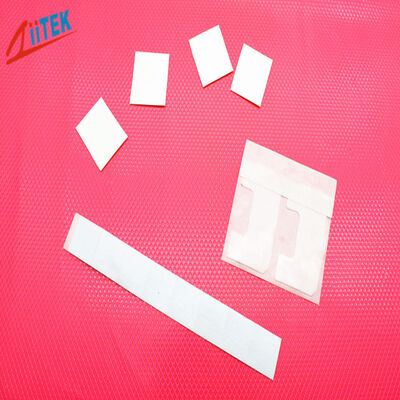

Large Image : 0.3mm Thickness IGBT Heatsink white Thermal Adhesive Tape With Glass Fiber Backing Acrylic

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIA812

Payment & Shipping Terms:

Minimum Order Quantity:	10SQM
Price:	0.1-10 USD/PCS
Packaging Details:	10RL/bag
Delivery Time:	2-3Work day
Payment Terms:	T/T
Supply Ability:	1000SQM/Day

Contact Now

Detailed Product Description

Products Name:	0.3mm Thickness IGBT Heatsink White Thermal Adhesive Tape With Glass Fiber Backing Acrylic	Thickness:	0.012"(0.30mm)
Adhesive Type:	Acrylic Adhesive	Color:	White
180° Peel Adhesion(gf/inch) Steel, Immediate:	≥1200	Thermal Conductivity:	0.8 W/mK
Voltage Breakdown（V）:	≥3000	Keywords:	Thermal Adhesive Tape
Highlight:	adhesive foam tape , acrylic adhesive tape , 0.304mm Thickness Thermal Adhesive Tape

0.3mm Thickness IGBT Heatsink white Thermal Adhesive Tape With Glass Fiber Backing Acrylic

The TIA^®812 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.

Features

> Thermal Conductivity: 0.8 W/mK

> High bonding strength
> Good thermal conductivity efficiency
> Easy to apply and can be die-cut into custom sizes
> Stable operation over a wide temperature range

Applications

> LED module
> Power device
> Consumer electronics
> Communication equipment

Typical Properties of TIA^®800 Series
Product Name	TIA^®802	TIA^®804	TIA^®806	TIA^®808	TIA^®810	TIA^®812	TIA^®815	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							******
Continuous Use Temp	-40℃ to 125℃							******
Thickness	0.002" 0.05mm	0.004" 0.10mm	0.006" 0.15mm	0.008" 0.20mm	0.010" 0.25mm	0.012" 0.30mm	0.015" 0.38mm	ASTM D374
Voltage Breakdown	≥600	≥1200	≥1800	≥2500	≥2700	≥3000	≥4000	ASTM D149
Thermal Conductivity	0.8 W/mK							ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate	≥ 1200							ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs	≥ 1400							ASTM D3330
Holding Power (H/inch) @25℃	≥ 48 Hours							ASTM D3654
Holding Power (H/inch) @80℃	≥ 48 Hours							ASTM D3654

Product Specifications

Standard Thickness:

0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),

0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA^®800 Series rolls can be reinforced with glass fiber.

The TIA^® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
