| Product Name: | Phase Changing Materials | Color: | Gray |
|---|---|---|---|
| Thermal Conductivity: | 5.0 W/mK | Density: | 2.6g/cc |
| Temperature Range: | -25℃～125℃ | Thickness: | 0.127~0.25mmT |
| Highlight: | thermal insulating materials,heat sensitive materials,Thermal Interface Material Gray |
||
Gray -25℃ - 125℃ Thermal Interface Material Phase Change for High Power LED Lights
TIC™805G series is low melting point thermal interface material. At 50℃, TIC™800G series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.TIC™800G series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.
TIC™800G Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.
TIC800G Series Datasheet-(E)-REV01.pdf
Applications Include:
> LED Lighting
> Thermal test stands
> DC/DC Converts
> High Frequency Microprocessors
> Notebook and Desktop PCs
> Computer Serves
> Memory Modules
> Cache Chips
> IGBTs
Features:
For Lowest Thermal Resistance :
> 0.014℃-in² /W thermal resistance
> Naturally tacky at room temperature,
no adhesive required
> No heat sink preheating required
| Typical Properties of TICTM800G Series | |||||
| Product Name | TICTM805G | TICTM808G | TICTM810G | TICTM812G | Test Method |
| Color | Gray | Gray | Gray | Gray | Visual |
| Thickness | 0.005" (0.126mm) |
0.008" (0.203mm) |
0.010" (0.254mm) |
0.012" (0.305mm) |
|
| Thickness Tolerance | ±0.0008'' (±0.019mm) |
±0.0008'' (±0.019mm) |
±0.0012'' (±0.030mm) |
±0.0012'' (±0.030mm) |
|
| Density | 2.6g/cc | Helium Pycnometer | |||
| Temperature range | -25℃～125℃ | ||||
| Phase Change Softening Temperature | 50℃~60℃ | ||||
| Thermal Conductivity | 5.0 W/mK | ASTM D5470 (modified) | |||
| Thermal Impedance @ 50 psi(345 KPa) | 0.014℃-in²/W | 0.020℃-in²/W | 0.038℃-in²/W | 0.058℃-in²/W | ASTM D5470 (modified) |
| 0.09℃-cm²/W | 0.13℃-cm²/W | 0.25℃-cm²/W | 0.37℃-cm²/W | ||
Standard Thicknesses:
0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.0012"(0.305mm)
Consult the factory alternate thickness.
Standard Sizes:
10" x 16"(254mm x 406mm) 16" X 400' (406mm X 121.92M)

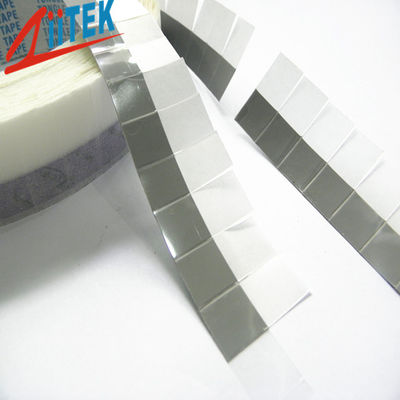

TIC™800 series are supplied with a white release paper and a bottom liner. TIC800™ series is available in kiss cut an extended pull tab liner or individual die cut shapes.
Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC™800 series products.
Reinforcement:
No reinforcement is necessary.
