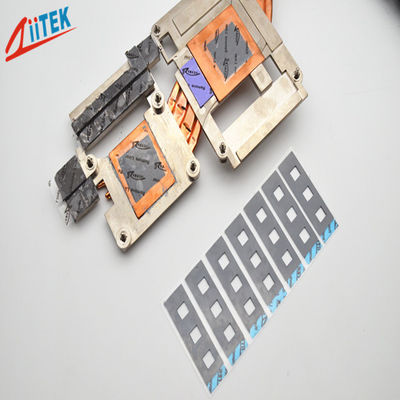

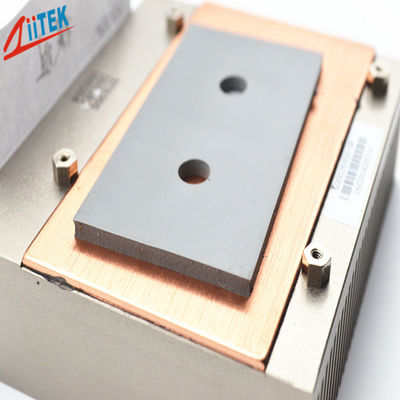

2.5W/MK CPU Heatsink Hardness 25 Shore 00 Thermally Conductive Pad For Electronic Components
Company Profile
A silicone thermal pad is a type of thermal interface material (TIM) which is highly conductive and comprises of conformable materials which are used to provide a heat path between heat sinks and electronic devices where uneven surface topography, air gaps and texture preclude good thermal transfer. Ziitek supply a wide range of silicone thermal pads with varying properties to suit every application.
The TIF®100-25-11U Series is an ultra soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with extreme gel grade flexibility to achieve a perfect fit with low stress. It is suitable for solving problems such as large tolerances,uneven surfaces, and susceptibility of precision components to mechanical damage in high-precision assembly.
Features
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF™TIF™100-25-11U Series |
| Color |
Gray/White |
Visual |
| Construction & Compostion |
Ceramic filled silicone rubber |
****** |
| Specific Gravity |
2.35 g/cc |
ASTM D297 |
| Heat Capacity |
1 l/g-K |
ASTM C351 |
| Hardness |
25 Shore 00 |
ASTM 2240 |
| Outgassing(TML) |
0.0055 |
ASTM E595 |
| Continuos Use Temp |
-50 to 200℃ |
****** |
| Dielectric Breakdown Voltage |
>5000 VAC |
ASTM D149 |
| Dielectric Constant |
5.5 MHz |
ASTM D150 |
| Volume Resistivity |
4.0X1013Ohm-meter |
ASTM D257 |
| Fire rating |
94 V0 |
equivalent UL |
| Thermal conductivity |
2.5W/m-K |
ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.Please contact us for confirming
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
