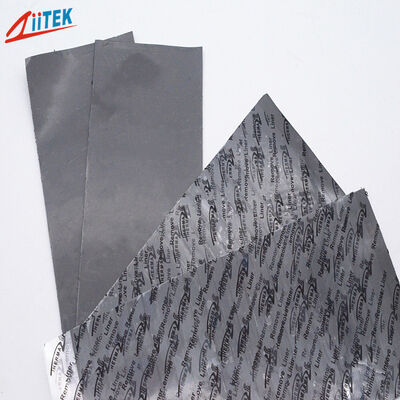

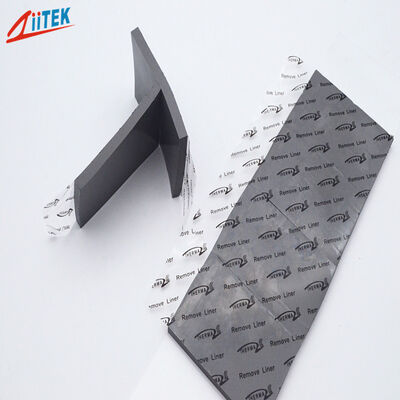

6.5W/Mk Insulation Thermal Conductive Pad For LED Heat Dissipation Silicone Materials 65 Shore00

6.5W/Mk Insulation Thermal Conductive Pad For LED Heat Dissipation Silicone Materials 65 Shore00
6.5W/Mk Insulation Thermal Conductive Pad For LED Heat Dissipation Silicone Materials 65 Shore00
video play

Large Image :  6.5W/Mk Insulation Thermal Conductive Pad For LED Heat Dissipation Silicone Materials 65 Shore00

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-65-11U
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Products Name: 4.0W/Mk Insulation Thermal Conductive Pad For LED Heat Dissipation Silicone Materials 60 Shore00 Color: Dark Gray
Thermal Conductivity: 6.5W/m-K Hardness: 65/27 Shore 00
Specific Gravity: 3.4 G/cc Recommended Operating |Temperature (%22C): -40 To 200℃
Breakdown Voltage (V/mm): ≥5500 VAC Keywords: Thermal Pad
Application: LED Heat Dissipation
Highlight:

thermally conductive pad

,

thermal conductive material

,

4.0W/mk Thermal Conductive pad

6.5W/Mk Insulation Thermal Conductive Pad For LED Heat Dissipation Silicone Materials 65 Shore00​


Company Profile


Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:



Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel



All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL


Products description

TIF®100-65-11U Series is an ultra-soft thermal interface material designed specifically to_protect_precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. lt is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.

Features

>  Good thermal conductive: 6.5 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness
>  RoHS compliant
>  UL recognized


Applications

>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)
>  CPU
>  Display card
>  Mainboard/mother board

Typical Properties of TIF®100-65-11U Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.4 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 65 Shore 00 27 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant@ 1MHz 7.0  ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 6.5 W/m-K ASTM D5470
6.5 W/m-K ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in customshapes and various forms.
For other thicknesses or more information,please contact us.
6.5W/Mk Insulation Thermal Conductive Pad For LED Heat Dissipation Silicone Materials 65 Shore00 0

Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
