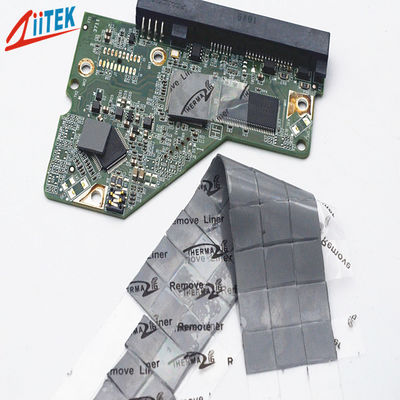

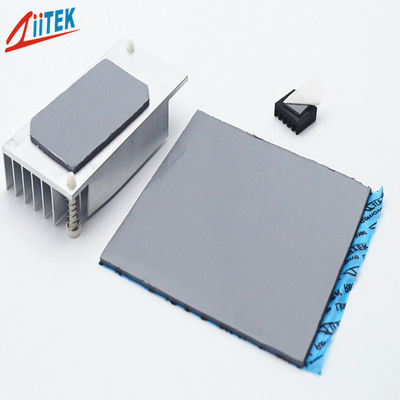

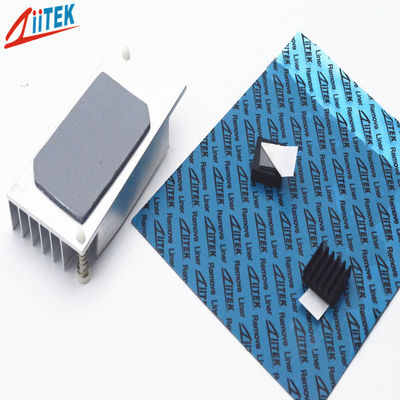

Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation

Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation
Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation

Large Image :  Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-20-10E
Document: TIF100-20-10E_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 100000pcs/day

Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation

Description
Products Name: Factory Outlet 2W/mK Thermal Conductive Pad 35 Shore00 Silicone Sheet 2.7 G/cm³ For Smartphone Heat Dissipation Density: 2.7g/cm³
Dielectric Constant @1MHz: 5.0 Application: Smartphone Heat Dissipation
Smaple: Fres Sample Keywords: Thermal Conductive Pad
Thermal Conductivity: 2.0 W/m-K Hardness: 65/35 Shore 00
Highlight:

thermally conductive pad

,

thermal conductive material

,

Thermal Conductive Pad 35 shore00

Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation


Products description



The TIF®100-20-10E use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features


> Good thermal conductive: 2.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness


Applications


> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)



Typical Properties of TIF®100-20-10E Series
Property Value Test method
Color Gray Visual
Construction Ceramic filled silicone elastomer ******
Density(g/cm³) 2.7 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 35 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 2.0 W/m-K ASTM D5470
2.0 W/m-K ISO22007

Factory Outlet 2W/mK Thermal Conductive Pad 35 shore00 silicone sheet 2.7 g/cm³ For Smartphone Heat Dissipation 0

Products specification


Standard Thickness: 0.010"(0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size:16"×16" (406 mm×406 mm).


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.
