| Construction & Compostion: | Ceramic Filled Silicone Rubber | Thermal Conductivity: | 3.0W/m-K |
|---|---|---|---|
| Hardness: | 60 Shore 00 | Specific Gravity: | 2.75 G/cc |
| Continuos Use Temp: | -50 To 200℃ | Dielectric Breakdown Voltage: | >10000 VAC |
| Highlight: | thermally conductive pad,thermal conductive material,Thermal Conductive Pad Compressible |
||

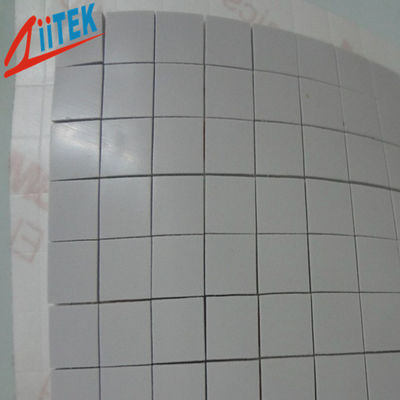

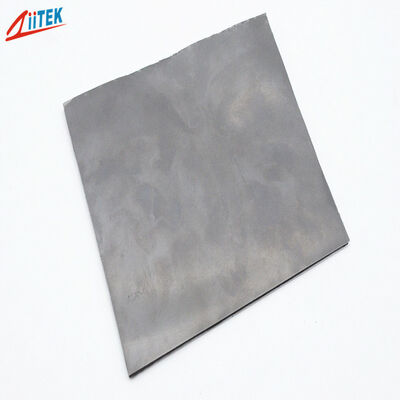

3W Soft Compressible Thermal Conductive Pad for LED Heat Dissipation 2.75 g / cc Specific Gravity
| Naturally tacky needing no further adhesive coating 3.0 W/mK |
| Available in varies thicknesses |
| Broad range of hardnesses available |
| Moldability for complex parts |

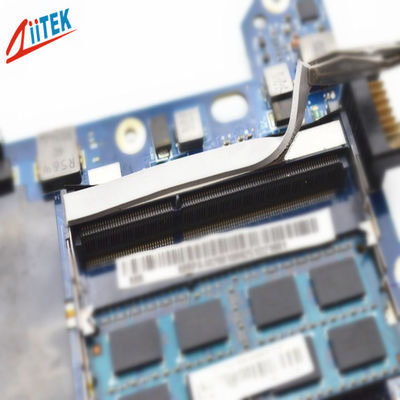

| CPU |
| display card |
| mainboard/mother board |
| notebook |
| power supply |

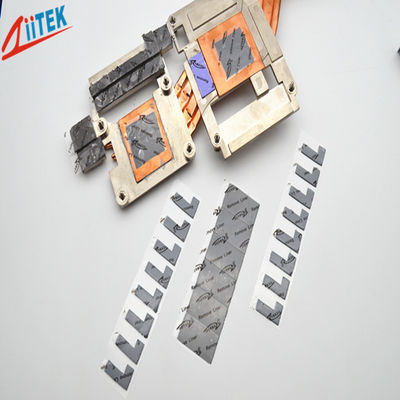

| Heat pipe thermal solutions |
| Memory Modules |
| Mass storage devices |
| Automotive electronics |
| Set top boxes |
|
Typical Properties of TIF™100-30-10F Series
|
||||
|
Color
|
Gray |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm | 0.36 |
| 20mils / 0.508 mm | 0.41 | |||
|
Specific Gravity
|
2.75 g/cc | ASTM D297 |
30mils / 0.762 mm |
0.47 |
|
40mils / 1.016 mm |
0.52 | |||
|
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.58 |
|
60mils / 1.524 mm |
0.65 |
|||
|
Hardness
|
60 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.72 |
|
80mils / 2.032 mm |
0.79 | |||
|
Tensile Strength
|
45 psi |
ASTM D412 |
90mils / 2.286 mm |
0.87 |
|
100mils / 2.540 mm |
0.94 | |||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.01 |
|
120mils / 3.048 mm |
1.09 | |||
|
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.17 |
|
140mils / 3.556 mm |
1.24 | |||
|
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.34 |
|
160mils / 4.064 mm |
1.42 | |||
|
Volume Resistivity
|
7.8X10" Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.50 |
|
180mils / 4.572 mm |
1.60 | |||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.68 |
|
200mils / 5.080 mm |
1.77 | |||
|
Thermal conductivity
|
3.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
