Product Details:
Payment & Shipping Terms:
|
| Name: | Hardeness 65 Shore A TIS™680-12AB Two Parts Thermal Conductive Adhesive 1.2W/mK For LED Light Potting | Thermal Conductivity: | 1.2 W/m-K |
|---|---|---|---|
| Specific Gravity@25℃: | 1.7 G/cc | Packing: | 1kg/can |
| Components: | Two Component | Keywords: | Thermal Conductive Adhesive |
| Mix Color: | Gray | ||
| Highlight: | high temperature adhesive,thermally conductive adhesives,thermal conductive adhesive 4.5W / mK |
||

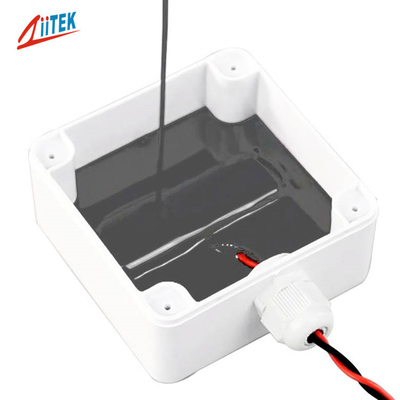

Hardeness 65 Shore A TIS™680-12AB Two Parts Thermal Conductive adhesive 1.2W/mK For LED Light Potting
Product Summary:
TIS™680-12AB Series is a two-part silicone potting adhesive with high thermal conductivity, room temperature curable,long working time and firere sistance.lt is especially suitable for capacitor, small electronic equipment sealing. Its flexible, elastic characteristics enable it to provide cushioning for the materials it is coated with. The lower viscosity aliows the thermal potting adhesive to cover the surface more fully,greatly increasing the efficiency of heat transfer from the heating device or the entire PCB to the metal case or diffusion plate,thus improving the efficiency and service life of the electronic.
Features
> Good thermal conductive: 1.2W/mK
> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity, easy gas emissions
> Good solvent resistance and waterproof performance
> longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process
Application
> Industrial control,transformer,coil, amplifier, high voltage package, relay, high current junction box, etc.;
> Heat sink assembly, thermal sensor potting, thermal conductive product potting;
> Heat conduction between the battery cell and the cold tube;
> LED and power drive potting;
| Typical Properties of TIS™ 680-12AB Series | ||
| Material Properties (Before Curing) | ||
| TISTM680-12A | TISTM680-12B | |
| Color | white | Gray |
| Viscosity @25℃ Brookfield | 3000 mPa.s | 3000 cPs |
| Shelf life @25℃ in sealed container | 6 months | 6 months |
| Mixing ratio (weight ratio) | A:B =100 :100 | |
| Mix color | Gray | |
| Operational Time (250g @25℃) |
30 mins | |
| Conditions for Complete Curing | @25℃ 24H | |
| @70℃ 2H | ||
| @100℃ 1H | ||
| Material Properties(after Curing) | ||
| Hardness (Shore A)@25℃ | 65 | |
| Density(g/cc) | 1.7 | |
| Operating temperature | -40℃ ~160℃ | |
| Elongation | 120% | |
| Elongation | 4.50% | |
| CLTE(1/℃) | 3.0x 10^(-5) | |
| Fire resistance UL94 | V-0 | |
| Water Absorption Rate (wt%) | < 0.1 | |
| Thermal Conductivity | 1.2W/m-K | |
| Thermal Impedance @1mm ( ℃- in²/W ) | 0.48 | |
| Dielectric Breakdown Voltage ( V/mm) | 6000 | |
| Dielectric Constant@1MHz | 4.2 | |
| Volume resistivity @ 25℃( ohm-cm) | 3.0x 10^13 | |

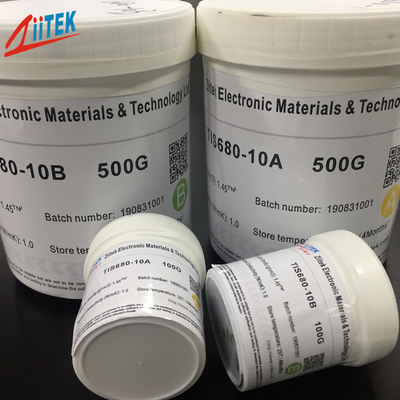

Packing details:
1KG A/B for each tank.
5KG A/B each.
10KG A/B each.
