0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp

0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp
0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp
video play

Large Image :  0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA806
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Price: 0.1-10 USD/PCS
Packaging Details: 10RL/bag
Delivery Time: 2-3Work day
Payment Terms: T/T
Supply Ability: 1000SQM/Day
Contact Now
Detailed Product Description
Products Name: 0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp Keywords: Thermal Adhesive Tape
Color: White Thickness: 0.006"/0.15mm
Construction &Compostion: Acrylic Adhesive Voltage Breakdown (V): ≥1200
Thermal Conductivity: 0.8 W/mK Recommended Operating Temperature (°C): -40℃ To 125℃
Highlight:

adhesive foam tape

,

thermally conductive adhesive tape

,

Thermal Adhesive Tape 0.8 W/mK

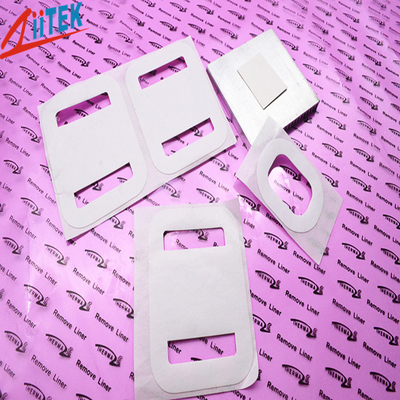

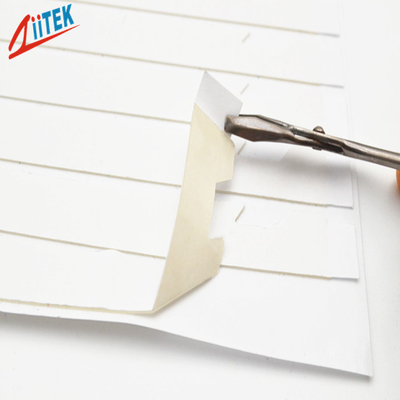

0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp​


The TIA®806 Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

Features

> Thermal Conductivity: 0.8 W/mK
> High bonding strength
> Good thermal conductivity efficiency
> Easy to apply and can be die-cut into custom sizes
> Stable operation over a wide temperature range

Applications

> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED module
> Power device
> Consumer electronics
> Communication equipment
0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp 0

Typical Properties of TIA®800 Series
Product Name TIA®802 TIA®804 TIA®806 TIA®808 TIA®810 TIA®812 TIA®815 Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ******
Continuous Use Temp -40℃ to 125℃ ******
Thickness 0.002" 0.05mm 0.004" 0.10mm 0.006" 0.15mm 0.008" 0.20mm 0.010" 0.25mm 0.012" 0.30mm 0.015" 0.38mm ASTM D374
Voltage Breakdown ≥600 ≥1200 ≥1800 ≥2500 ≥2700 ≥3000 ≥4000  ASTM D149
Thermal Conductivity 0.8 W/mK ASTM D5470
180° Peel Adhesion (gf/inch)  Steel, Immediate ≥ 1200  ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs ≥ 1400 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 Hours ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 Hours ASTM D3654

Product Specifications

Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
0.8 W/Mk White Thermal Adhesive Tape For Led Fluorescent Lamp 1
Company Profile


Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
