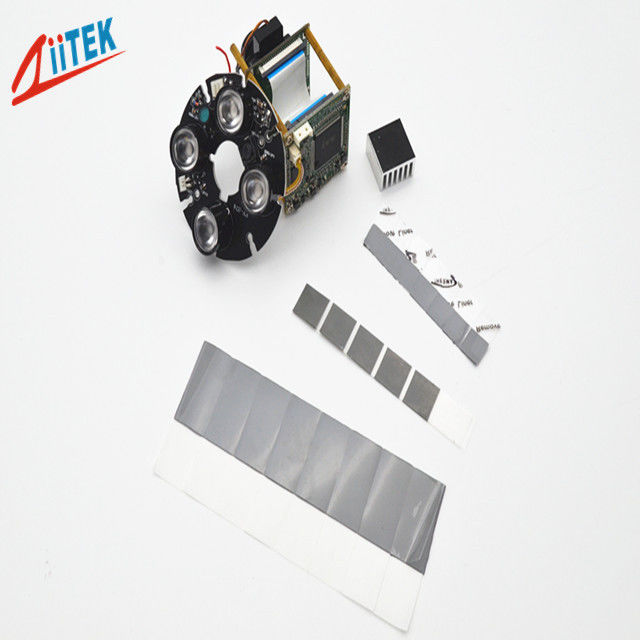

Low Melting Materials Customized High Quality Phase Change Materials For Notebook

Low Melting Materials Customized High Quality Phase Change Materials For Notebook
Low Melting Materials Customized High Quality Phase Change Materials For Notebook
video play

Large Image :  Low Melting Materials Customized High Quality Phase Change Materials For Notebook

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIC™812G series
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiation
Packaging Details: 1000pcs/bay
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Detailed Product Description
Product Name: Phase Changing Materials Thermal Conductivity: 5.0 W/mK
Thickness: 0.127~0.25mmT Color: Gray
Density: 2.6g/cc Temperature Range: -25℃~125℃
Highlight:

thermal insulating materials

,

heat sensitive materials

,

Heat Sensitive Materials For Notebook

Low Melting Materials Customized High Quality Phase Change Material For Notebook



TIC™812G series is  low melting point thermal interface material. At 50℃, TIC™800G series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.



TIC™812G series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.



TIC™812G Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.


TIC800G Series Datasheet-(E)-REV01.pdf



Low Melting Materials Customized High Quality Phase Change Materials For Notebook 0



Applications Include:


> High Frequency Microprocessors
> Notebook and Desktop PCs
> Computer Serves
> Memory Modules
> Cache Chips
> IGBTs



Features:



For Lowest Thermal Resistance :
> 0.014℃-in² /W thermal resistance
> Naturally tacky at room temperature,
     no adhesive required
> No heat sink preheating required



Typical Properties of TICTM812G Series
Product Name TICTM805G TICTM808G TICTM810G TICTM812G Test Method
Color Gray Gray Gray Gray Visual
Thickness 0.005"
(0.126mm)
0.008"
(0.203mm)
0.010"
(0.254mm)
0.012"
(0.305mm)

Thickness Tolerance  ±0.0008''
(±0.019mm)
±0.0008''
(±0.019mm)
±0.0012''
(±0.030mm)
±0.0012''
(±0.030mm)

Density 2.6g/cc Helium Pycnometer
Temperature range -25℃~125℃
Phase Change Softening Temperature 50℃~60℃
Thermal Conductivity 5.0 W/mK ASTM D5470 (modified)
Thermal Impedance @ 50 psi(345 KPa) 0.014℃-in²/W 0.020℃-in²/W 0.038℃-in²/W 0.058℃-in²/W ASTM D5470 (modified)
0.09℃-cm²/W 0.13℃-cm²/W 0.25℃-cm²/W 0.37℃-cm²/W



Standard Thicknesses:


0.005"(0.127mm)          0.008"(0.203mm)          0.010"(0.254mm)        0.0012"(0.305mm)
Consult the factory alternate thickness.



Standard Sizes:


 10" x 16"(254mm x 406mm)       16" X 400'   (406mm X 121.92M)
TIC™800 series are supplied with a white release paper and a bottom liner. TIC800™ series is available in kiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:


Peressure Sensitive Adhesive is not applicable for TIC™800 series products.

Reinforcement:
No reinforcement is necessary.

Low Melting Materials Customized High Quality Phase Change Materials For Notebook 1



Packaging Details & Lead time



1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company Profile



With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



Low Melting Materials Customized High Quality Phase Change Materials For Notebook 2



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
