Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability

Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability
Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability
Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability

Large Image :  Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-30-15E
Document: TIF100-30-15E_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Payment Terms: T/T
Supply Ability: 10000/day
Contact Now

Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability

Description
Product Name: Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability Color: Purple
Thickness: 0.010"~0.200"(0.25mm~5.0mm) Breakdown Strength（V/mm): ≥5500
Thermal Conductivity: 3.0W/mK Construction: Ceramic Filled Silicone Elastomer
Keywords: Thermal Conductive Pad Application: To Enhance Heat Dissipation And Maintain Electronic Component Stability
Highlight:

thermal conductive pad for heat dissipation

,

thermal interface solution for electronics

,

thermal pad for component stability

Thermal Conductive Pad Providing Thermal Interface Solution To Enhance Heat Dissipation And Maintain Electronic Component Stability
Company Profile

Ziitek, founded in 2006 and headquartered in Dongguan, Guangdong Province, is the world's leading manufacturer of thermal interface materials and thermal management solutions. After years of technical development, the company has built a complete product matrix including thermal interface materials, EMI shielding materials, heating products, foamed silica gel sealing rings, and heat conduction engineering plastics. With production bases in Kunshan, Taiwan Province and Vietnam, we provide one-stop thermal management solutions for customers worldwide.

Product Description

TIF®100-30-15E Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides excellent surface conformity and superior ease of use, effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features
  • Good thermal conductivity
  • Moldability for complex parts
  • Soft and compressible for low stress applications
  • RoHS compliant
  • UL recognized
Applications
  • Micro heat pipe thermal solutions
  • Automotive engine control units
  • Telecommunication hardware
  • Handheld portable electronics
  • Semiconductor automated test equipment (ATE)
  • CPU
  • Display card
  • Routers
  • AI server
  • Medical equipment
  • Unmanned aerial vehicle (UAV)
  • Robot
  • Wireless Charger
Typical Properties of TIF®100-30-15E Series
Property Value Test Method
Color Purple Visual
Construction & Composition Ceramic filled silicone elastomer ******
Density (g/cm³) 3.0 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00		 ASTM D374
Hardness (Shore 00) 65 | 35 ASTM 2240
Recommended Operating Temperature (℃) -40 to 200 ******
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 7.5 ASTM D150
Volume Resistivity (Ohm-meter) ＞1.0×10¹² ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 3.0W/m-K ASTM D5470
ISO22007
Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

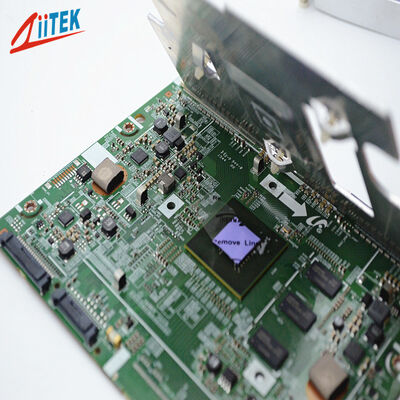

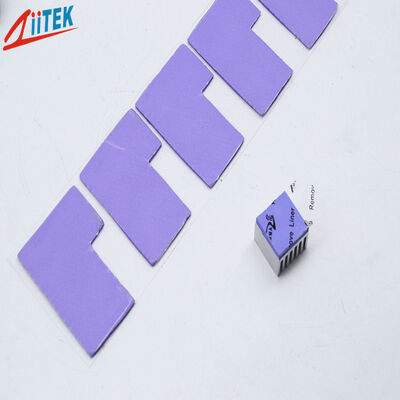

Ziitek Thermal Conductive Pad Product Image
Ziitek Culture

Quality: Do it right the first time, total quality control

Effectiveness: Work precisely and thoroughly for effectiveness

Service: Quick response, on time delivery and excellent service

Team work: Complete teamwork across all departments to provide satisfying service for customers

Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are manufacturer in China / Vietnam
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock, or 7-10 work days if the goods are not in stock, depending on quantity.
Q: Is a thinner Thermal Silicone Pad always better?
A: Not necessarily. If the pad is too thin to adequately fill the actual gap, proper interface contact may not be achieved. The appropriate thickness should be selected based on the actual structural tolerances and application requirements.
Q: What are the common thicknesses of Thermal Silicone Pads?
A: Different product series can be available in thicknesses ranging from very thin pads to several millimeters or even thicker options. The appropriate thickness should be determined based on the customer's gap, compression requirements, and assembly structure.
Q: Can Thermal Silicone Pads be customized in size?
A: Yes. Thermal silicone pads can be customized according to the customer's product structure, including length, width, thickness, and complex shapes. Die-cutting, punching, and other processing methods can also be used to produce customized parts.
Q: Can Thermal Silicone Pads have an adhesive backing?
A: Some thermal silicone pads can be supplied with single-sided or double-sided adhesive backing. The adhesive is mainly used to assist with material positioning and installation. The appropriate adhesive should be selected according to the operating temperature and application environment.
