High Compliance 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation

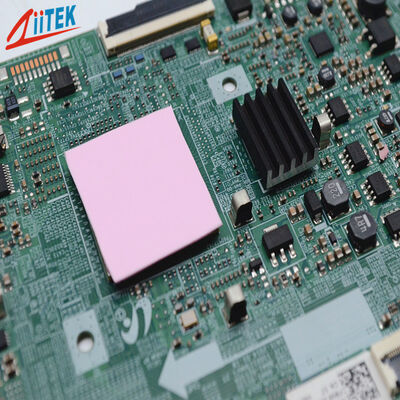

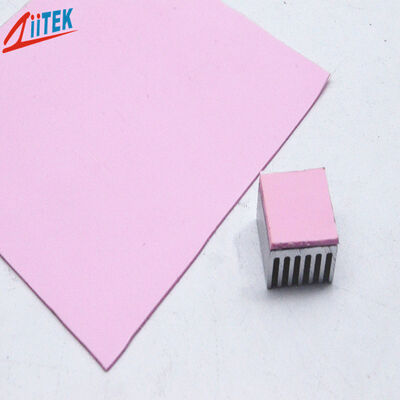

Large Image : High Compliance 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL
Model Number:	TIF100-15-14S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	High Compliance 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation	Construction:	Ceramic Filled Silicone Elastomer
Thickness:	0.25mm~5.0mm	Density(g/cm³):	2.3
Thermal Conductivity:	1.5W/m-K	Color:	Pink
Keywords:	Thermally Conductive Gap Filler Pads	Application:	AI Processors AI Servers Heat Dissipation

High Compliance 1.5W Thermally Conductive Gap Filler Pads For AI Processors AI Servers Heat Dissipation

The TIF^®100-15-14S Series is a well-balanced, general-purpose thermal pad.It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Features:

> Good thermal conductive: 1.5W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications:

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> CPU
> Display card
> Mainboard/mother board
> Notebook

Typical Properties of TIF^®100-15-14S Series
Property	Value		Test method
Color	Pink		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020 (0.25~0.5)	0.030~0.200 (0.75~5.00)	ASTM D374
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal conductivity(w/m-K)	1.5		ASTM D5470
	1.5		ISO 22007
Fire rating	V-0		UL94 (E331100)

Standard Sheets Sizes:

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

TheTIF^®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
