1.2W High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad Thermal Pad For IGBTs

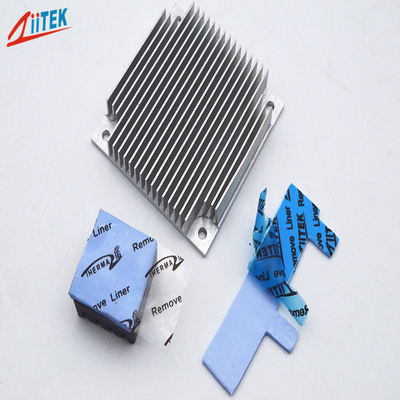

Large Image : 1.2W High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad Thermal Pad For IGBTs

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF100-12-05US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Products Name:	1.2W High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad Thermal Pad For IGBTs	Sample:	Sample Free
Thermal Conductivity:	1.2W/m-K	Thickness:	0.020"(0.5mm)~0.200"(5.0mm)
Hardness:	20±5 Shore 00	Color:	Blue
Specific Gravity:	2.0g/cc	Application:	IGBTs
Keywords:	Thermal Pad

1.2W High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad Thermal Pad For IGBTs

The TIF^®100-12-05US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

> Good thermal conductive: 1.2W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized

Applications

> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Notebook
> Power supply
> Heat pipe thermal solutions

Typical Properties of TIF^®100-12-05US Series
Color	Blue	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.0 g/cc	ASTM D297
Hardness	20±5 Shore 00	ASTM 2240
Operating Temp	-40 ~ 160℃	******
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149
Dielectric Constant @1MHz	4.5 MHz	ASTM D150
Volume Resistivity	≥1.0X10¹²Ohm-cm	ASTM D257
Fire rating	94 V0	UL E331100
Outgassing(TML)	0.40%	ASTM E595
Thermal conductivity	1.2W/m-K	ASTM D5470

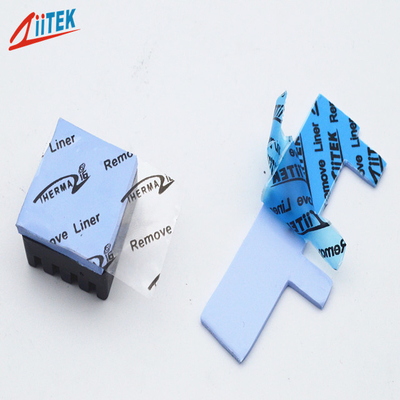

1.2W High-Strength High-Temperature Resistant Thermal Silicon Insulator Pad Thermal Pad For IGBTs 0
