Thermal Pad 4mm Silicone Adhesive Pads 8.5W/MK High Temperature Thermal Pad For CPU GPU PC Motherboard

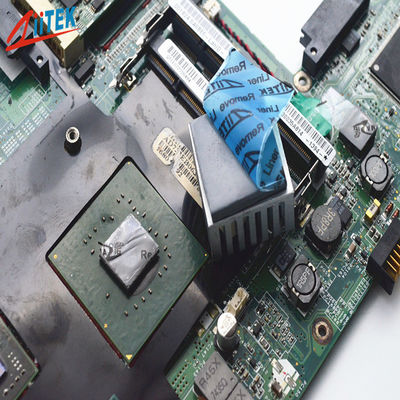

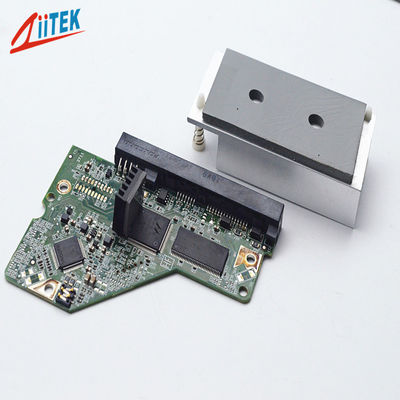

Large Image : Thermal Pad 4mm Silicone Adhesive Pads 8.5W/MK High Temperature Thermal Pad For CPU GPU PC Motherboard

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF7160RUS Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	Thermal Pad 4mm Silicone Adhesive Pads 8.5W/MK High Temperature Thermal Pad For CPU GPU PC Motherboard	Thermal Conductivity& Compostion:	8.5W/m-K
Keywords:	High Temperature Thermal Pad	Construction:	Ceramic Filled Silicone Elastomer
Application:	CPU GPU PC Motherboard	Specific Gravity:	3.2g/cc
Color:	Gray	Continuos Use Temp:	-45℃ To 200℃
Hardness:	20 Shore 00	Thickness:	4.0mmT

Thermal Pad 4mm Silicone Adhesive Pads 8.5W/MK High Temperature Thermal Pad For CPU GPU PC Motherboard

Ziitek TIF^TM7160RUS thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.

Features:
> Good thermal conductive:8.5W/MK
> Soft and compressible for low stress applications
> Available in varies thicknesses
> High tack surface reduces contact resistance
> Easy release construction
> Electrically isolating
> High durability

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Heat pipe thermal solutions
> Set top boxes
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light

Typical Properties of TIF^TM7160RUS Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Specific Gravity	3.2g/cc	ASTM D297
thickness	4.0mmT	ASTM D374
Hardness (thickness＜1.0mm)	20 (Shore 00)	ASTM 2240
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	>3500 VAC	ASTM D149
Dielectric Constant	5.1~6.1MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	8.5W/m-K	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
