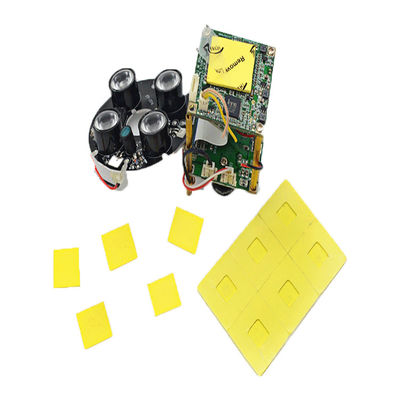

RoHS Recognized Low Melting 1.5W Phase Changing Materials For Laptop Computer
TIC®800K-A1 Series this series is a high-performance and high-cost-utilization thermal interface material. lts unique grain directionality and plate structure allow it to be precisely consistent with the surface, and it’s thermal conversion effect is amplified. At a temperature 50C higher than its transition temperature,the TlC series begins a softening phase transition, which can fill the tiny irregular contact surfaces of the device,forming an interface with a small contact thermal resistance and achieving a good heat dissipation effect.
Features
> Low thermal resistance
> Elf-adhesive without the need for additional surface adhesives
> Low-pressure application environment
Applications
> Power conversion equipment
> Power supply and vehicle storage battery
> Large communication switch hardware
> LED TV/ Lighting
> Laptop computer
| Typical Properties of TIC®800K-A1 Series |
| Product Name |
TIC®805K-A1 |
TIC®806K-A1 |
Test Method |
| Construction |
Non-Silicone Thermoplastic / Polyimide film |
***** |
| Color |
Yellow |
Visual |
| Thickness range(inch/mm) |
0.005 inch/0.125mm |
0.006 inch/0.150mm |
ASTM D374 |
| Density |
2.0g/cc |
ASTM D792 |
| Recommended Operating Temperature |
-40℃～150℃ |
***** |
| Breakdown Voltage (V/mm) |
5000 |
ASTM D149 |
| Dielectric Constant @1MHz |
4.5 |
ASTM D150 |
| Volume Resistivity (Ohm-cm) |
1.0*1012 |
ASTM D257 |
| Phase Change Softening Temperature |
50℃~60℃ |
***** |
| Thermal Conductivity |
1.5 W/mK |
ASTM D5470 |
| Thermal Impedance (℃-in²/W) |
0.2 |
0.21 |
ASTM D5470 |
Standard Thicknesses:
0.005 inch (0.125mm) / 0.006inch (0.150mm)
Standard Sizes:
10" x 100"(254mm x 30.48m)

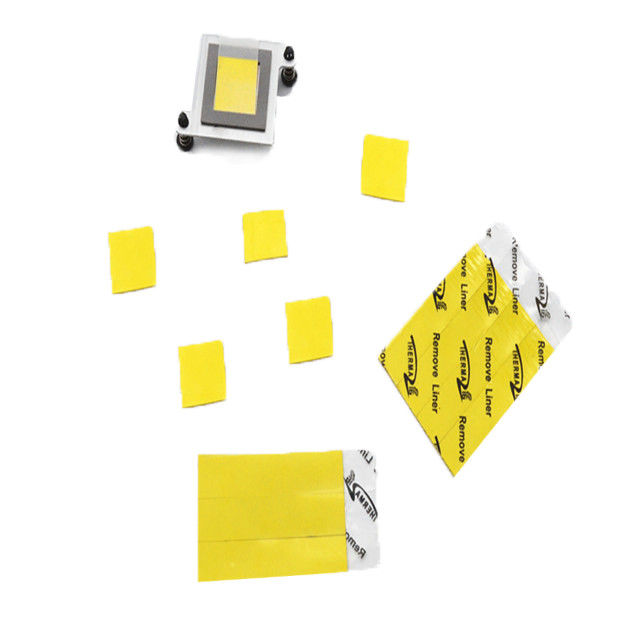

The TlC series can be die-cut into different shapes for supply. If you need different thicknesses or would like to know more product information about thermal conductive materials, please contact our company.
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
