Thermal Heat Resistant Thermally Conductive Insulator Pad Material Sheet Thermal Insulation Materail For Automotive Electronics

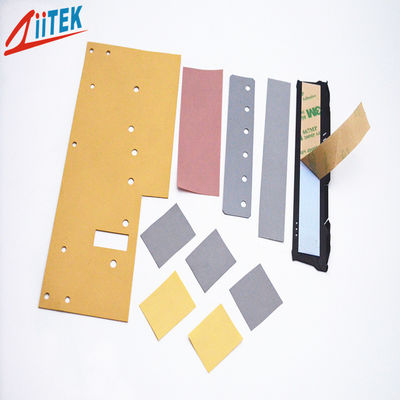

Large Image : Thermal Heat Resistant Thermally Conductive Insulator Pad Material Sheet Thermal Insulation Materail For Automotive Electronics

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS805-16-03

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	Thermal Heat Resistant Thermally Conductive Insulator Pad Material Sheet Thermal Insulation Materail For Automotive Electronics	Color:	Pink
Application:	Car Battery & Power Supply	Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Continuos Use Temp:	-60 To 180℃	Volume Resistivity:	＞1.0X10¹² Ohm-cm
Thermal Conductivity:	1.6W/mK	Density:	2.4 G/cc
Key Words:	Silicone Insulation Pad

Thermal Heat Resistant Thermally Conductive Insulator Pad Material Sheet Thermal Insulation Materail For Automotive Electronics

The TIS®809-16-02 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

Typical Properties of TIS^®805-16-03 Series
Property	Value	Test Method
Color	Yellow	Visual
Construction &Compostion	Ceramic filled silicone elastomer /fiberglass	******
Thickness range	0.005inch (0.127mm)	ASTM D374
Tensile Strength(MPa)	40	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	3000	ASTM D149
Dielectric Constant @ 1MHz	6.0	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL(E331100)
Thermal conductivity	1.6W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.5	ASTM D5470

Standard Thicknesses

0.005inch (0.127mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
