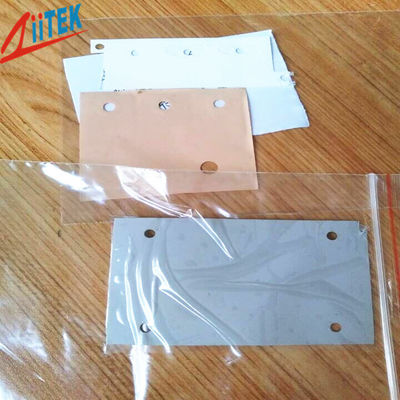

Fiberglass Reinforcement Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicone Insulation Pad For Car Battery

Large Image : Fiberglass Reinforcement Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicone Insulation Pad For Car Battery

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS809-16-02

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	0.1-10 USD/PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Payment Terms:	T/T in advance
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	Fiberglass Reinforcement Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicone Insulation Pad For Car Battery	Color:	Pink
Application:	Car Battery & Power Supply	Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Continuos Use Temp:	-60 To 180℃	Volume Resistivity:	＞1.0X10¹² Ohm-cm
Thermal Conductivity:	1.6W/mK	Density:	2.4 G/cc
Key Words:	Silicone Insulation Pad

Fiberglass Reinforcement Thermally Conductive Insulator Pad Efficient Heat Dissipation Silicone Insulation Pad For Car Battery

The TIS^®809-16-02 Series of products are highly efficient insulating products and they also have thermal conductivity. It achieves the effect of both insulation and heat conduction by adding insulating silicone base material to the heat-conducting material.

Features:
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:
> Car Battery & Power Supply

> Power semiconductors
> Audio and Video components

> Motor controllers

Typical Properties of TIS^®809-16-02 Series
Property	Value	Test Method
Color	Pink	Visual
Construction &Compostion	Ceramic filled silicone elastomer /fiberglass	******
Thickness range	0.009inch (0.229mm)	ASTM D374
Tensile Strength(MPa)	50	ASTM D412
Density	2.4 g/cc	ASTM D297
Continuos Use Temp	-60 to 180℃	******
Breakdown Voltage(V/mm)	5500	ASTM D149
Dielectric Constant @ 1MHz	6.0	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94 V0	UL(E331100)
Thermal conductivity	1.6W/m-K	ASTM D5470
Thermal impedance(℃-in²/W)@30psi	0.65	ASTM D5470

Standard Thicknesses

0.009inch (0.229mm)

Standard Sizes
12" x 160"(304mm x 48.76M)

The TlS series can be die-cut into different shapes and provided. lf you need different thicknesses, please contact our company.

Packaging Details & Lead time

The packaging of silicone insulation materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
