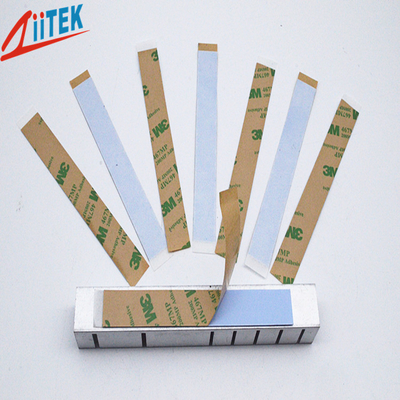

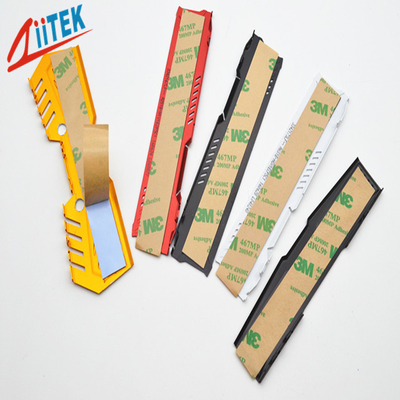

94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications

94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications
video play

Large Image :  94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TIS109-05
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3Word days
Supply Ability: 100000PCS/Day
Contact Now
Detailed Product Description
Products Name: Heat Thermal Insulation Materials Thermal Gap Filler Cooling Electrical Heat Transfer Thermal Insulation Sheet Color: Blue
Dielectric Constant: 5.5 MHz Specific Gravity: 1.72g/cc
Continuos Use Temp: -45 To 180℃ Hardness: 50 Shore 00
Fire Rating: 94-V0 Thermal Conductivity: 1.0W/mK
Highlight:

Effective Heat Transfer Thermal Gap Filler

,

Electrical Applications Thermal Gap Filler

,

94-V0 Rated Thermal Gap Filler

Heat Thermal Insulation Materials Thermal Gap Filler Cooling Electrical Heat Transfer Thermal Insulation Sheet



The TIS™109-05 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.



TIS100-05 Series Datasheet-(E)-REV01.pdf



94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications 0
Features


> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and high dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components





Typical Properties of TIS100-05 series
Product Name TIS109-05 TIS112-05 TIS118-05 Test Method
Color blue Visual
Construction &Compostion Ceramic filled silicone elastomer / Fiberglass *******
Composite Thickness 0.23mm 0.3mm 0.45mm ASTM D374
Hardness 50 Shore 00 ASTM D751
Specific Gravity 1.72g/cc ASTM D297
Tensile Strength 425 Kpsi ASTM D412
Continuous Use Temp -45 to 180℃ *******
Dielectric Breakdown Voltage >3500 VAC ASTM D149
Dielectric Constant 5.5 MHz ASTM D150
Volume Resistivity 4.0X10¹³ Ohm-meter ASTM D257
Flame Rating 94 V0 E331100
Thermal conductivity 1.0 W/mK ASTM D5470


Standard Thicknesses:
0.o09"(0.228mm),0.012"(0.304mm),0.018"(0.457mm)

Consult the factory alternate thickness.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.



Standard Sizes:
12" x 160(304mm x 48.76M)
lndividual die cut shapes can be supplied.

94-V0 Rated Thermal Gap Filler for Effective Heat Transfer in Electrical Applications 1



Company profile



Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.







Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online
