Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC

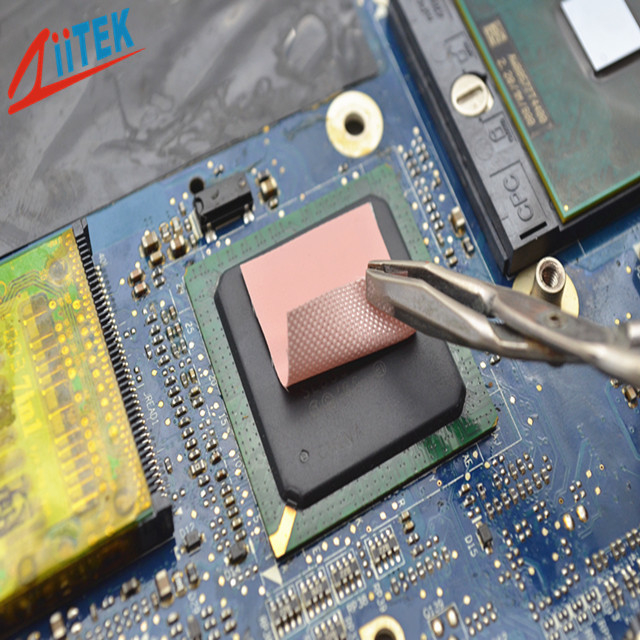

Large Image : Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS118-02 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Word days
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC	Color:	Pink
Keywords:	Thermal Insulation Gasket	Construction & Compostion:	Ceramic Filled Silicone Elastomer / Fiberglass
Specific Gravity:	1.751 G/cc	Continuos Use Temp:	-45 To 180℃
Thermal Conductivity:	1.0W/mK	Flame Fire Rating:	94-V0
Hardness:	50 Shore A
Highlight:	High Temperature Resistant Thermal Insulation Gasket , Fire Retardant Thermal Insulation Gasket , PC Thermal Insulation Gasket

Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC

The TIS™118-02 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Features

> High thermal conductive and high dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications

> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes

> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers

Typical Properties TIF^TM118-02 Series
Color	Pink	Visual
Construction & Composition	Ceramic filled silicone elastomer/ Fiberglass	******
Thickness	0.45mm	ASTM D374
Specific Gravity	1.751 g/cc	ASTM D297
Hardness	50 Shore A
Tensile Strength	425 Kpsi	ASTM D412
Continuous Use Temperature	-45~180℃	******
Dielectric breakdown voltage	＞3500VAC	ASTM D149
Dielectric Constant@1MHz	5.5 MHz	ASTM D150
Volume Resistivity	4.0x10³Ohm-cm	ASTM D257
Thermal Conductivity	1.0W/mk	ISO22007.2.2
Flame Rating	94 V0	UL E331100

Standard Thicknesses:
0.009"(0.228mm), 0.012"(0.304mm), 0.018"(0.457mm), Consult the factory alternate thickness.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

Standard Sizes:
12" x 160" (304mm x 48.76M)
lndividual die cut shapes can be supplied.

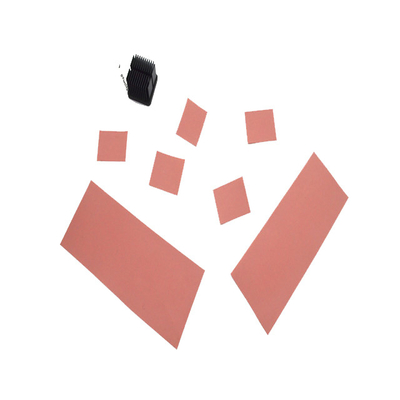

Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC 0

Company Profile

With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC 1

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
