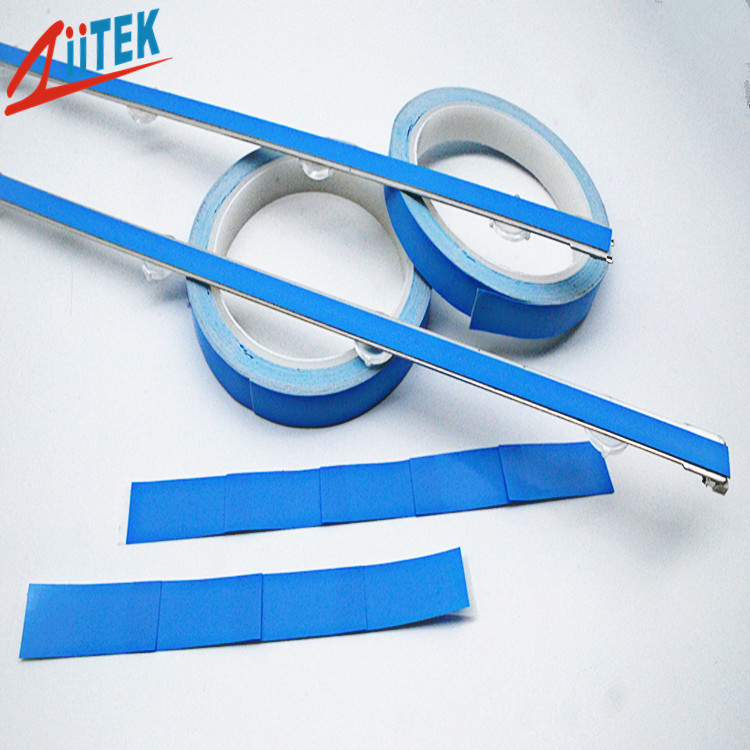

High Temperature Resistance Double Sided Thermal Adhesive Tape For Heatsink

High Temperature Resistance Double Sided Thermal Adhesive Tape For Heatsink
High Temperature Resistance Double Sided Thermal Adhesive Tape For Heatsink
video play

Large Image :  High Temperature Resistance Double Sided Thermal Adhesive Tape For Heatsink

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA800FG
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Packaging Details: 10RL/bag
Delivery Time: 2-3Work day
Supply Ability: 1000SQM/Day
Contact Now
Detailed Product Description
Products Name: Double Sided Thermal Adhesive Tape For Heatsink Keywords: Thermal Adhesive Tape
Color: White Adhesive Type: Acrylic Adhesive
Backing Type: Glass Fiber Peel Adhesion: 1200 G/inch2
Thermal Conductivity: 0.8 W/mK Voltage Breakdown: > 3000 Vac
Highlight:

Double sided Thermal Adhesive Tape

,

High Temperature Resistance Thermal Adhesive Tape

,

thermal adhesive tape for heatsink

High Temperature Resistance Double sided thermal Adhesive Tape for Heatsink​



The TIA™800FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.



TIA800FG Series Datasheet-(E)-REV01.pdf



High Temperature Resistance Double Sided Thermal Adhesive Tape For Heatsink 0


Features


> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive



Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units



Typical Properties of TIA™800FG Series　
Product Name TIATM805 TIATM806 TIATM808 TIATM810 TIATM812 TIATM815 TIATM820 Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ********
Backing Type The galss filber ********
Continuous Use Temp -45℃ to 120℃ ********
Composite Thickness 0.005" 0.127mm 0.006" 0.152mm 0.008" 0.203mm 0.010" 0.254mm 0.012" 0.304mm 0.015" 0.381mm 0.020" 0.508mm ASTM D374
Voltage Breakdown > 2500 Vac > 3000 Vac > 3500 Vac > 4000 Vac > 4200 Vac > 4500 Vac > 5000 Vac ASTM D149
Thermal Conductivity 0.8 W/mK ASTM D5470
180° Peel Adhesion > 1000 g/inch(Steel, Immediate) PSTC-1
180° Peel Adhesion > 1200 g/inch(Steel after 24 hrs) PSTC-1
Holding Power 25℃/Hours > 48 Hours PSTC-7
Holding Power 80℃/Hours > 48 Hours PSTC-7


Standard Thicknesses:

0.005"(0.127mm), 0.006"(0.152mm), 0.008"(0.203mm),
0.010"(0.254mm), 0.015"(0.381mm), 0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:

16" x 100"(406mm x 30.48mm)

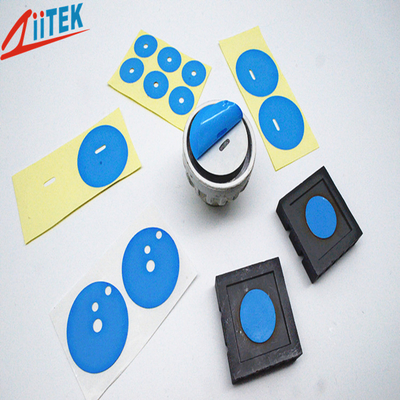

Individual die cut shapes can be supplied.

Reinforcement:

TIA™800 Series sheets are fiberglass reinforced.

High Temperature Resistance Double Sided Thermal Adhesive Tape For Heatsink 1

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



High Temperature Resistance Double Sided Thermal Adhesive Tape For Heatsink 2



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
