Heat Resistant Acrylic Adhesive Double Sided Thermal Conductive Tape For LED Light Heat Dissipation Tap

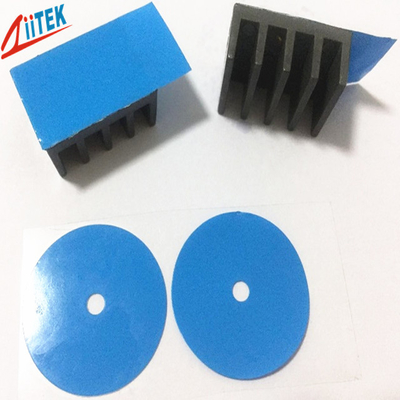

Large Image : Heat Resistant Acrylic Adhesive Double Sided Thermal Conductive Tape For LED Light Heat Dissipation Tap

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIA806FG

Payment & Shipping Terms:

Minimum Order Quantity:	10SQM
Packaging Details:	10RL/bag
Delivery Time:	2-3Work day
Supply Ability:	1000SQM/Day

Contact Now

Detailed Product Description

Thickness:	0.1mmT~0.5mmT	Adhesive Type:	Acrylic Adhesive
Peel Adhesion:	1200 G/inch2	Thermal Conductivity:	0.8 W/mK
Voltage Breakdown:	>2500 Vac	Key Words:	Thermal Acrylic Tape
Highlight:	Double Sided Thermal Conductive Tape , Heat Resistant Thermal Conductive Tape , LED Light Thermal Conductive Tape

High Temperature Heat Resistant Acrylic Adhesive Double Sided Thermal Conductive Tape for LED Light Heat dissipation tape

The TIA™800FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA800FG Series Datasheet-(E)-REV01.pdf

Features

> Thermal Conductivity: 0.8W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

Mount heat sink onto BGA graphic processor or drive processor.

Mount heat spreader onto power converter PCB or onto motor control PCB

Can be used instead of heat cure adhesive,screw mounting or clip mounting

Heat sink onto BGA graphic processor

Heat sink to computer processor

Heat sink onto drive processor

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Piranha wroof and common lED module

LED module for Channelletters

SMD LED module

LED Flesible strip, LED bar

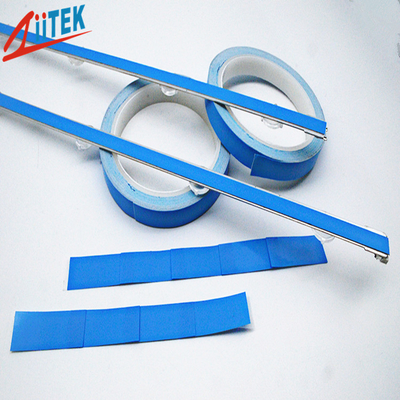

Heat Resistant Acrylic Adhesive Double Sided Thermal Conductive Tape For LED Light Heat Dissipation Tap 0

Typical Properties of TIA™800FG Series
Product Name	TIA^TM805	TIA^TM806	TIA^TM808	TIA^TM810	TIA^TM812	TIA^TM815	TIA^TM820	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							********
Backing Type	The galss filber							********
Continuous Use Temp	-45℃ to 120℃							********
Composite Thickness	0.005" 0.127mm	0.006" 0.152mm	0.008" 0.203mm	0.010" 0.254mm	0.012" 0.304mm	0.015" 0.381mm	0.020" 0.508mm	ASTM D374
Voltage Breakdown	> 2500 Vac	> 3000 Vac	> 3500 Vac	> 4000 Vac	> 4200 Vac	> 4500 Vac	> 5000 Vac	ASTM D149
Thermal Conductivity	0.8 W/mK							ASTM D5470
180° Peel Adhesion	> 1000 g/inch(Steel, Immediate)							PSTC-1
180° Peel Adhesion	> 1200 g/inch(Steel after 24 hrs)							PSTC-1
Holding Power 25℃/Hours	> 48 Hours							PSTC-7
Holding Power 80℃/Hours	> 48 Hours							PSTC-7

Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.010"(0.254mm) 0.015"(0.381mm) 0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:
16" x 100"(406mm x 30.48m)
Individual die cut shapes can be supplied.

Reinforcement:
TIA™800 Series rolls type can add with fiberglass reinforced.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
