Wholesale Thermal Insulation Pad Insulating Material For GPU CPU

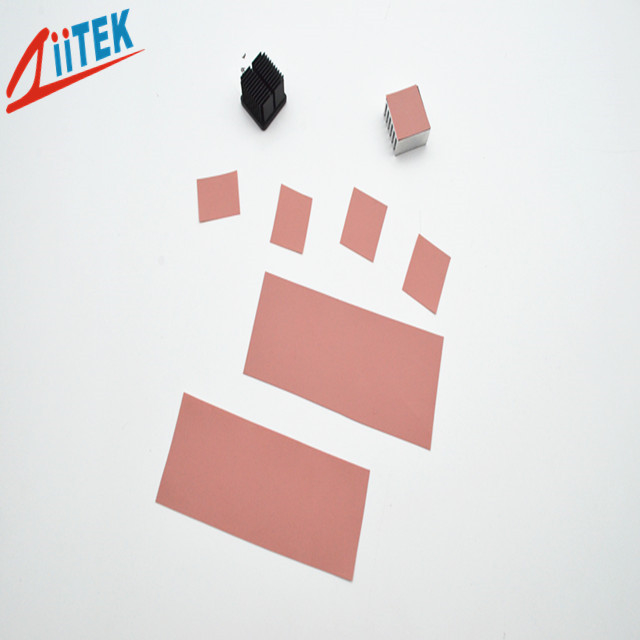

Large Image : Wholesale Thermal Insulation Pad Insulating Material For GPU CPU

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs and UL
Model Number:	TIS100-02 series

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3Work days
Supply Ability:	100000PCS/Day

Contact Now

Detailed Product Description

Products Name:	Wholesale Thermal Insulation Pad Insulating Material For GPU CPU	Color:	Pink
Construction & Compostion:	Ceramic Filled Silicone Elastomer	Specific Gravity:	1.751 G/cc
Continuos Use Temp:	-45 To 180℃	Volume Resistivity:	4.0X10¹³ Ohm-meter
Key Words:	Thermal Insulation Materials	Thermal Conductivity:	1.0W/mK
Highlight:	GPU Thermal Insulation Pad , CPU Thermal Insulation Pad , Insulating Material Thermal Insulation Pad

Thermal Conductive Insulating Silicone Sheet Material For New Energy

TIS^TM112-02 Series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

Wholesale Thermal Insulation Pad Insulating Material For GPU CPU 0

Features

> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications

> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers

Typical Properties TIF^TM112-02 Series
Color	Pink	Visual
Construction & Composition	Ceramic filled silicone elastomer/ Fiberglass	******
Thickness range	0.3mm	ASTM D374
Specific Gravity	1.751 g/cc	ASTM D297
Hardness	50 Shore A
Tensile Strength	425 Kpsi	ASTM D412
Continuous Use Temperature	-45~180℃	******
Dielectric breakdown voltage	＞3500VAC	ASTM D149
Dielectric Constant@1MHz	5.5 MHz	ASTM D150
Volume Resistivity	4.0*10³ Ohm-cm	ASTM D257
Thermal Conductivity	1.0W/mk	ISO22007.2.2
Flame Rating	94 V0	UL E331100

Standard Thicknesses:

0.009"(0.228mm) 0.012"(0.304mm) 0.018"(0.457mm)

Consult the factory alternate thickness.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on doule side with "A2" suffix.

Standard Sizes:

12"x 160'(304mm x 48.76M)

lndividual die cut shapes can be supplied.

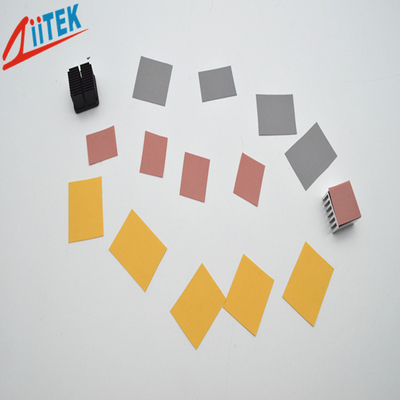

Wholesale Thermal Insulation Pad Insulating Material For GPU CPU 1

Packaging Details & Lead time

The packaging of Thermal Insulation Materials

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
