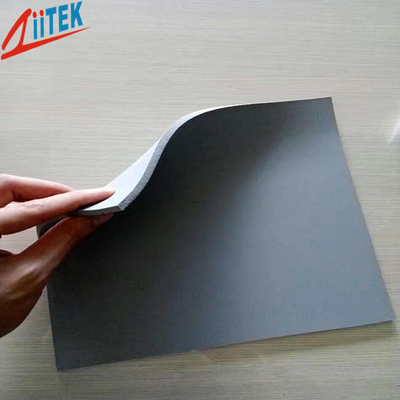

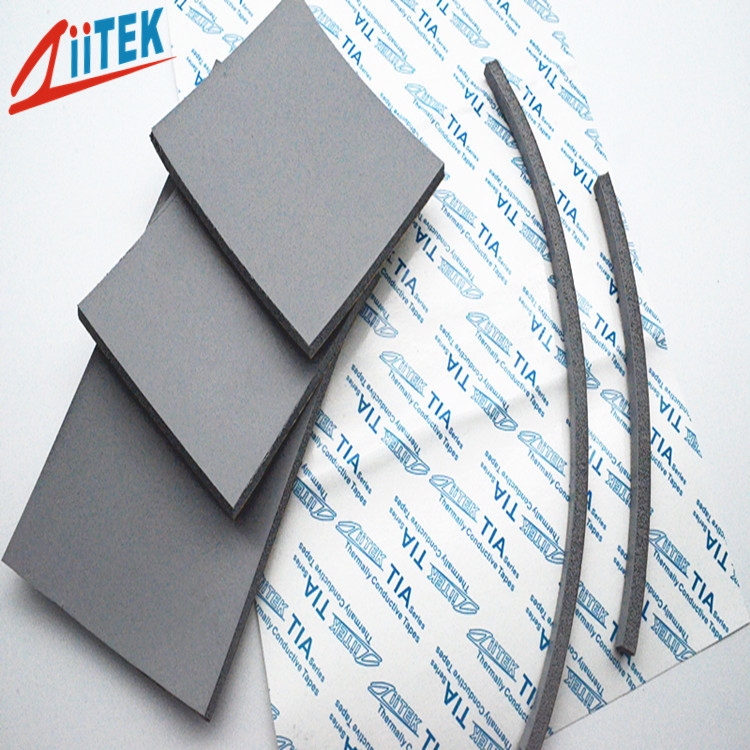

High-temperature and high-pressure resistant heat-conducting gasket
Z-FOAM 800 series is a kind of medium stress silicone foamed silica gel material with excellent compression deformation resistance. Compared with traditional carbon-based foaming materials, this material has excellent characteristics such as high and low temperature resistance (-60-200℃), high flame retardancy (V-0) and very low smoke concentration. In addition, the material has excellent aging resistance and weather resistance, and is an ideal material for shock absorption, buffering, sound insulation, protection, insulation and fire prevention.
Product characteristics
> High and low temperature resistance: -60~200℃
> Good sealing performance
> Ultraviolet and ozone resistance
> Good buffering and high compression.
> Recovered well after compression.
Application
In addition to resisting extreme environment, it has mechanical elasticity and safety characteristics, and is specially used for reliable sealing, buffering, vibration isolation and thermal insulation applications of transportation equipment, communication and electrical equipment, electronic products and components, industrial machinery and electrical appliances, and has flame retardancy and fire prevention.
| Z-Foam™ 800 |
| Technical description |
Unit |
Technical parameter |
Test method |
| Color |
***** |
Gray |
|
| Density |
g/cm3 |
0.35±0.03 |
ASTM D1056 |
| Compressive stress, 25% |
Kpa |
65±10 |
ASTM D1056 |
| Compression * * deformation |
% |
≤5.0 |
ASTM D1056 |
| 100℃@50% |
| Tensile-strength |
Mpa |
≥0.3 |
GB/T 528-2009 |
| Extensibility |
% |
≥90 |
GB/T 528-2009 |
| Water absorption |
% |
≤5.0 |
ASTM D570 |
| Low temperature bending |
***** |
-55℃ |
ASTM D1056 |
| Dielectric strength |
KV/mm |
≥3.0 |
GB/T 1695-2005 |
| Volume resistivity |
Ω.cm |
≥1.0*1015 |
GB/T 1695-2005 |
| Flame retardant rate |
***** |
V-0 |
E331100 |
| Thermal conductivity |
W/(m.k) |
0.06 |
ASTM D5930 |
Packaging Details & Lead time
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
