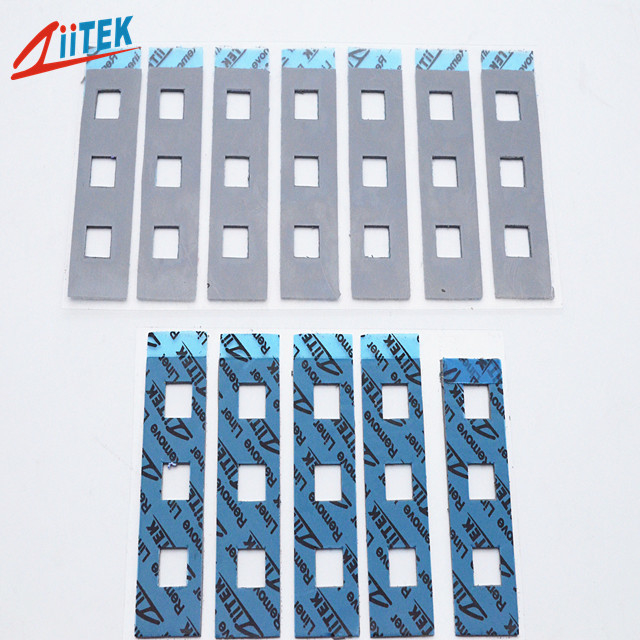

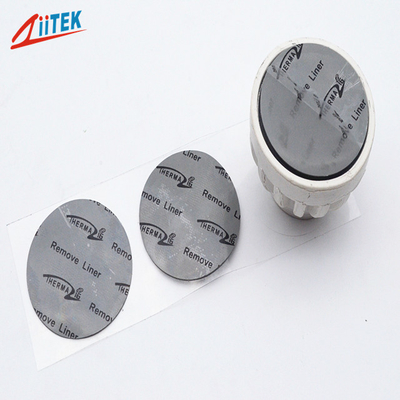

Material Specific Thermal Conductivity Thermal Pad For Audio Video Devices

Material Specific Thermal Conductivity Thermal Pad For Audio Video Devices

Large Image :  Material Specific Thermal Conductivity Thermal Pad For Audio Video Devices

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF760Q thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Name: Material Specific Thermal Conductivity Thermal Pad For Audio Video Devices Applications: CPU PC GPU
Material: Ceramic Filled Silicone Elastomer Certification: UL
Thermal Conductivity: 8.0W/m-K Thickness: 1.5mmT
Keyword: Thermal Pad
Highlight:

Audio Video Devices Thermal Pad

,

Material Specific Thermal Pad

,

Material Specific Thermal Conductivity thermal pad

Material Specific Thermal Conductivity thermal pad for Audio Video Devices





Ziitek TIF760Q is an extremely soft gap filling material rated at a thermal conductivity of 8.0W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. Ziitek TIF760Q is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.



TIF700Q-Series-Datasheet.pdf





Material Specific Thermal Conductivity Thermal Pad For Audio Video Devices 0



Features



> Good thermal conductive: 8.0 W/mK

> Thickness: 1.5 mmT

> hardness:60±10

> Colour: gray

> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance







Applications



> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics







Typical Properties of  TIF760Q  Series
Color
Blue
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

 3.55 g/cc

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness

1.5mmT

***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

60±10

ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity

 8.0W/mk

ASTMD5470
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
≥5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

 4.5MHz

ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
≥ 5.2X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating(no.E331100)
94-V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

8.0 W/m-K

GB-T32064
Visua l/ ASTM D751
ASTM D5470












































Company Profile



Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.
