Thermally Conductive Pad Gap Filler Thermal Pads Heat Transfer

Large Image : Thermally Conductive Pad Gap Filler Thermal Pads Heat Transfer

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF740Q thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Name:	Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad	Applications:	CPU PC GPU
Material:	Ceramic Filled Silicone Elastomer	Certification:	UL
Thermal Conductivity:	8.0W/m-K	Thickness:	1.0mmT
Keyword:	Thermally Sheet
Highlight:	Heat transfer Thermal Pads , Heat transfer Gap Filler Thermal Pads , Thermally conductive pad Gap Filler

Manufacturer Thermal Pad Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU

Ziitek TIF740Q is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

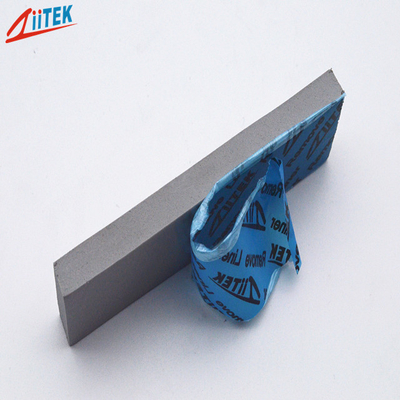

Thermally Conductive Pad Gap Filler Thermal Pads Heat Transfer 0

Features

> Good thermal conductive: 8.0 W/mK

> Thickness: 1.0 mmT

> hardness:60±10

> Colour: gray

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications

> LED Panel Light
> LED floor light
> Routers
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD

Typical Properties of TIF740Q Series
Color	Blue	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.55 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	1.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	60±10	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Thermal conductivity	8.0W/mk	ASTMD5470	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	≥5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.5MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	≥ 5.2X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating(no.E331100)	94-V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	8.0 W/m-K	GB-T32064	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

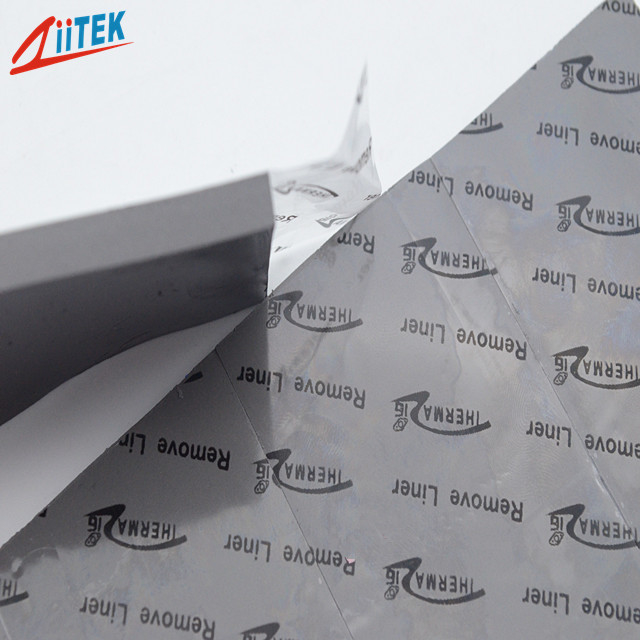

Thermally Conductive Pad Gap Filler Thermal Pads Heat Transfer 1

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge
