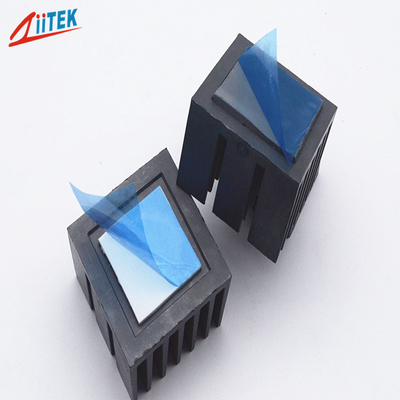

Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU

Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU

Large Image :  Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF7200PES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Name: Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad Applications: CPU PC GPU
Material: Ceramic Filled Silicone Elastomer Certification: UL
Thermal Conductivity: 7.5W/m-K Thickness: 5.0mmT
Keyword: Thermal Insulation Sheet
Highlight:

CPU Thermal Pad

,

Customized Silicon Thermal Insulation Sheet

,

CPU Thermal Conductive Pad

Manufacturer Thermal Pad Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU





Ziitek TIF7200PES thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.



TIF700PES-(TDS-EN-REV04).pdf





Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU 0



Features



> Good thermal conductive: 7.5 W/mK

> Thickness: 5.0 mmT

> hardness:10

> Colour: gray

> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications





Applications



> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar





Typical Properties of  TIF7200PES  Series
Color
Blue
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

 3.2 g/cc

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness

5.0mmT

***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

10

ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity

 7.5W/mk

ASTMD5470
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
≥5000 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

 5~6MHz

ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
≥ 3.5X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating(no.E331100)
V-0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

7.5 W/m-K

GB-T32064
Visua l/ ASTM D751
ASTM D5470












































Company Profile



With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

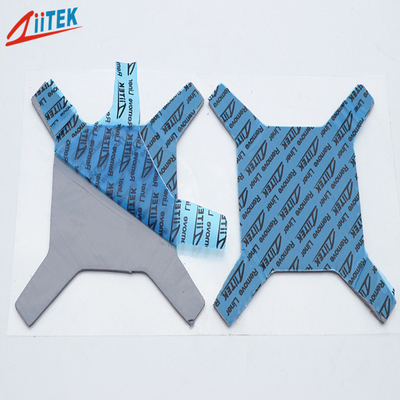

Manufacturer Thermal Conductive Pad Customized Silicon Thermal Insulation Sheet Thermal Pads for CPU 1



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.



Q:Do big buyers have promotional prices?

A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
