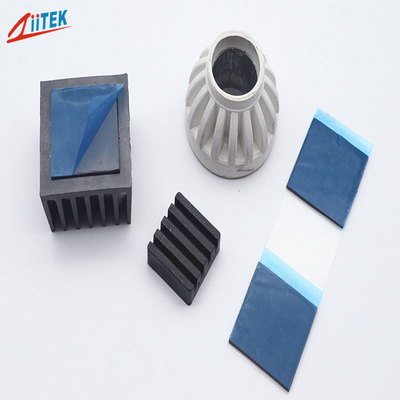

Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad

Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad

Large Image :  Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF7180PES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Name: Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad Applications: CPU PC GPU
Material: Ceramic Filled Silicone Elastomer Certification: UL
Thermal Conductivity: 7.5W/m-K Thickness: 4.5mmT
Keyword: Slicone Gasket Insulation Pad
Highlight:

Notebook Heat Dissipation Silicone Pad

,

Thermal Conductivity Silicone Pad

,

Insulation Pad Silicone Pad

Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad





Ziitek TIF7180PES thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.



TIF700PES-(TDS-EN-REV04).pdf





Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad 0



Features



> Good thermal conductive: 7.5 W/mK

> Thickness: 4.5 mmT

> hardness:10

> Colour: gray

> Easy release construction
> Electrically isolating
> High durability







Applications



> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
> LED Controller
> LED Ceilinglamp





Typical Properties of  TIF7180PES  Series
Color
Blue
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

 3.2 g/cc

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness

4.5mmT

***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

10

ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity

 7.5W/mk

ASTMD5470
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
≥5000 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

 5~6MHz

ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
≥ 3.5X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating(no.E331100)
V-0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

7.5 W/m-K

GB-T32064
Visua l/ ASTM D751
ASTM D5470












































Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

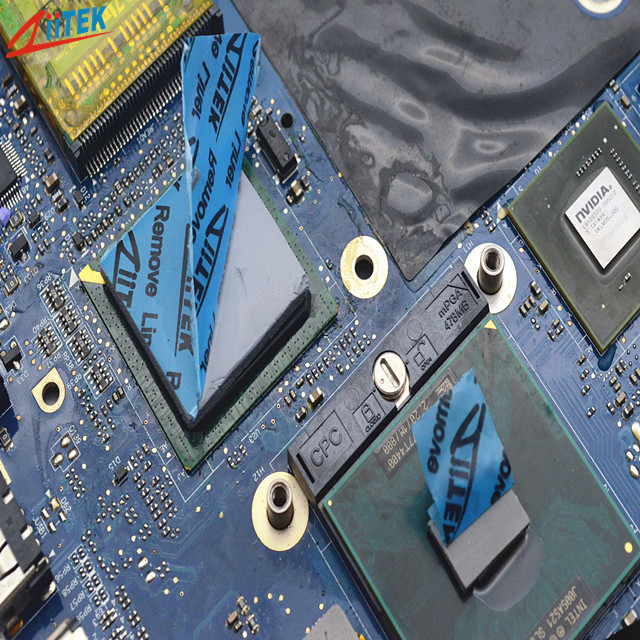

Thermal Conductivity Silicone Pad Notebook Heat Dissipation Slicone Gasket Insulation Pad 1



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information.



Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
