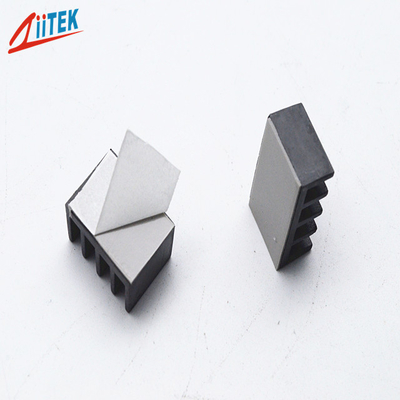

Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad

Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad
Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad
video play

Large Image :  Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF740PES thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Contact Now
Detailed Product Description
Name: Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad Applications: CPU PC GPU
Material: Ceramic Filled Silicone Elastomer Certification: UL
Thermal Conductivity: 7.5W/m-K Thickness: 1.0mmT
Keyword: Thermal Pad
Highlight:

Thermal Silicone Insulator Sheet

,

Thermal Silicone Pad

,

Thermally Conductive Silicone Pad

Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad





Ziitek TIF740PES is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.





TIF700PES-(TDS-EN-REV04).pdf





Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad 0



Features



> Good thermal conductive: 7.5 W/mK

> Thickness: 1.0 mmT

> hardness:10

> Colour: gray

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available





Applications



> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components







Typical Properties of  TIF740PES  Series
Color
 Blue
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

 3.2 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness

1.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

10
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity

 7.5W/mk
ASTMD5470
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
≥5000 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

 5~6MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
≥ 3.5X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating(no.E331100)
V-0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

7.5 W/m-K
GB-T32064
Visua l/ ASTM D751
ASTM D5470












































Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

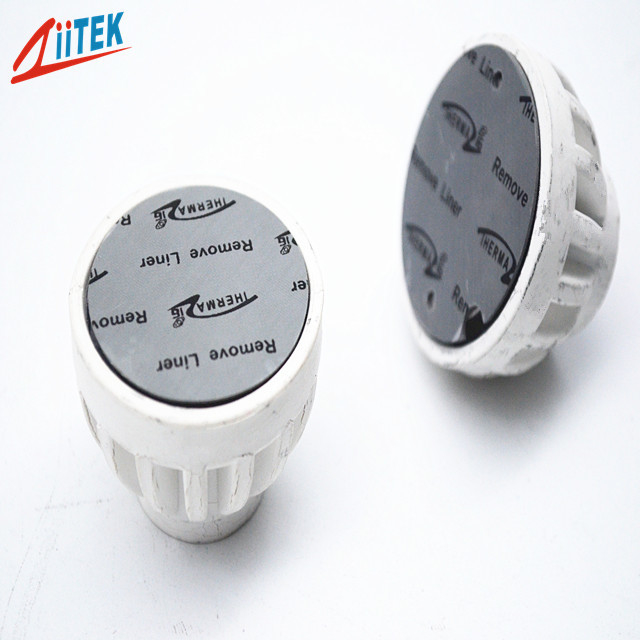

Thermal Silicone Insulator Sheet Thermally Conductive Silicone Pad Thermal Silicone Pad 1



FAQ



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.



Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
