China Wholesale Thermal Conductive Sheet Thermal Gap Filler Pad

China Wholesale Thermal Conductive Sheet Thermal Gap Filler Pad

Large Image :  China Wholesale Thermal Conductive Sheet Thermal Gap Filler Pad

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF7160PUS thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Name: China Wholesale Thermal Conductive Sheet Thermal Gap Filler Pad Applications: CPU PC GPU
Material: Ceramic Filled Silicone Elastomer Certification: UL
Thermal Conductivity: 7.5W/m-K Thickness: 4.0mmT
Keyword: Thermal Conductive Sheet
Highlight:

China Thermal Gap Filler Pad

,

Wholesale Thermal Conductive Sheet

,

China Thermal Conductive Sheet

China Wholesale Thermal Conductive Sheet Thermal Gap Filler Pad





Ziitek TIF7160HP is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.



TIF700PUS-data sheet.pdf

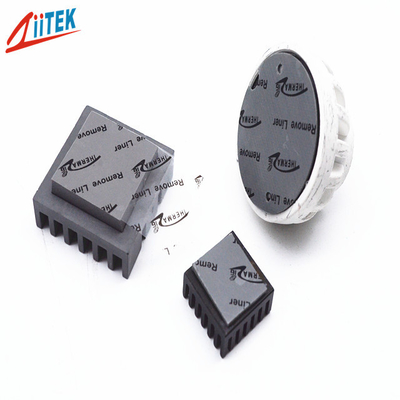

China Wholesale Thermal Conductive Sheet Thermal Gap Filler Pad 0



Features



> Good thermal conductive: 7.5 W/mK

> Thickness: 4.0 mmT

> hardness:20

> Colour: gray

> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance







Applications



> LED Panel Light
> LED floor light
> Routers
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD







Typical Properties of  TIF7160HP  Series
Color
Blue
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

 3.2 g/cc

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness

4.0 mmT

***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

20

ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity

 7.5W/mk

ASTMD5470
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
≥6000 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

 4.5MHz

ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
≥ 3.5X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

7.5 W/m-K

GB-T32064
Visua l/ ASTM D751
ASTM D5470












































Company Profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

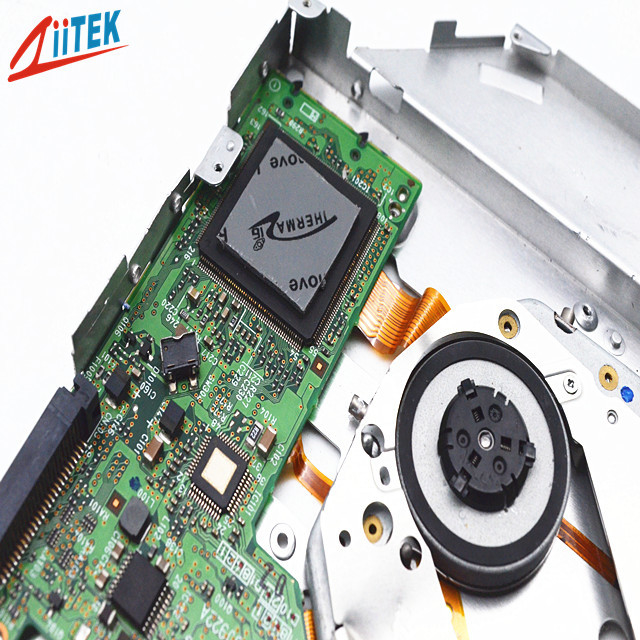

China Wholesale Thermal Conductive Sheet Thermal Gap Filler Pad 1



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
