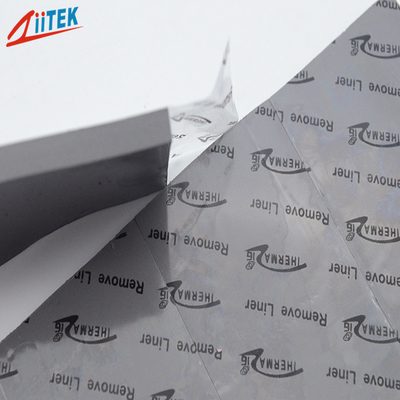

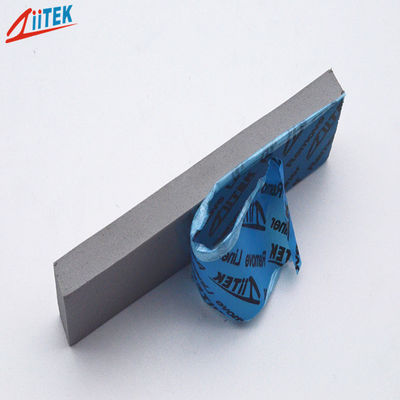

High Voltage Insulation Pads Thermal Conductive Silicone Heatsink Sheet For Laptop GPU CPU

Large Image : High Voltage Insulation Pads Thermal Conductive Silicone Heatsink Sheet For Laptop GPU CPU

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF7160Z thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Name:	High Voltage Insulation Pads Thermal Conductive Silicone Heatsink Sheet For Laptop GPU CPU	Thermal Conductivity:	7.0 W/m-K
Keyword:	Silicone Heatsink Sheet	Material:	Silicone
Certification:	UL	Applications:	CPU Cooling
Thickness:	4.0mmT
Highlight:	High Voltage Silicone Heatsink Sheet , Thermal Conductive Silicone Heatsink Sheet , Laptop GPU CPU Silicone Heatsink Sheet

High Voltage Insulation Pads Thermal Conductive Silicone Heatsink Sheet For Laptop GPU CPU

The TIF7160Z is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

TIF700Z-Series-Datasheet(E)-REV01.pdf

High Voltage Insulation Pads Thermal Conductive Silicone Heatsink Sheet For Laptop GPU CPU 0

Features

> Good thermal conductive: 7.0 W/mK

> Thickness: 4.0mmT

> hardness:55 shore 00

> Colour: Grey

> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance

Applications

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices

Typical Properties of TIF7160Z Series
Color	Grey	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.45 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	4.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	55 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Thermal conductivity	7.0W/mk	ASTMD5470	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 200℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.5MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	5.2X10¹³ Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	7.0 W/m-K	GB-T32064	Visua l/ ASTM D751	ASTM D5470

Company Profile

With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
