Product Details:
Payment & Shipping Terms:
|
| Certification: | UL | Name: | High Performance Silicone Cooling Pad With Dual Self-Adhesive Films For PC Laptop RAM |
|---|---|---|---|
| Thickness: | 3.0mmT | Thermal Conductivity: | 7.0 W/m-K |
| Material: | Silicone | Applications: | CPU Cooling |
| Keyword: | Thermal Pad | ||
| High Light: | PC Laptop RAM Silicone Cooling Pad,High Performance Silicone Cooling Pad,Self Adhesive Films Silicone Cooling Pad |
||

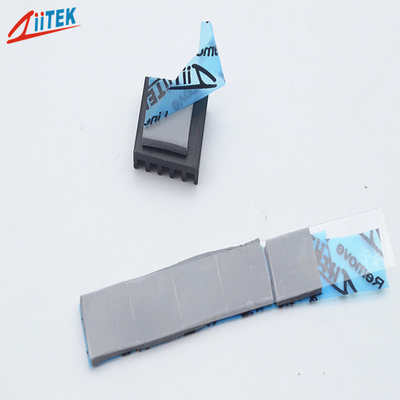

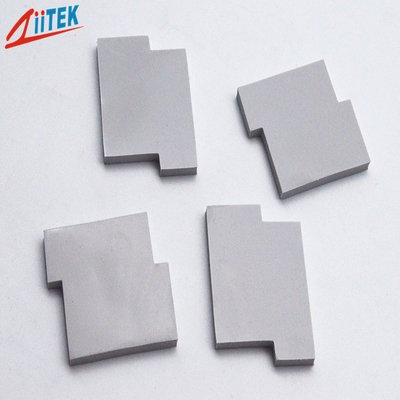

High Performance Silicone Cooling Pad with Dual Self-Adhesive Films for PC Laptop RAM
The TIF7100Z thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
TIF700Z-Series-Datasheet(E)-REV01.pdf
Features
> Good thermal conductive: 7.0 W/mK
> Thickness: 3.0mmT
> hardness:55 shore 00
> Colour: Grey
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
|
Typical Properties of TIF7120Z Series
|
||||
|
Color
|
Grey |
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
3.45 g/cc |
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
3.0mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
55 Shore 00 |
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
| Thermal conductivity |
7.0W/mk
|
ASTMD5470
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 200℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4.5MHz |
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
5.2X1013
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
7.0 W/m-K |
GB-T32064
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
