2.0mmT Conductive Silicone Pad Insulation RoHS Compliant

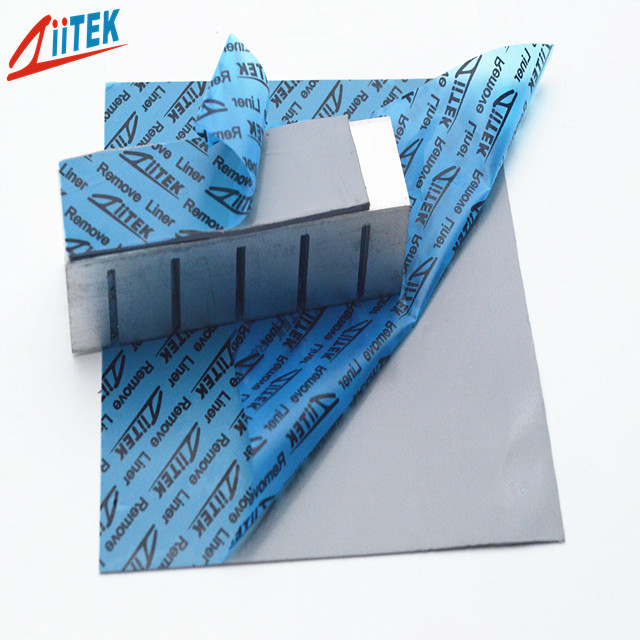

Large Image : 2.0mmT Conductive Silicone Pad Insulation RoHS Compliant

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF180-20-10UF thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Volume Resistivity:	1.0X10^12 Ohm-cm	Name:	2.0mmT Insulation RoHS Compliant Thermal Pad For LED-lit Lamps
Keyword:	Thermal Gap Pad	Construction & Compostion:	Ceramic Filled Silicone Elastomer
Fire Rating:	94 V0	Dielectric Constant:	4.6 MHz
Highlight:	2.0mm thermal gap pad , 2.0mm conductive silicone pad , RoHS Compliant conductive silicone pad

2.0mmT Insulation RoHS Compliant Thermal Pad for LED-lit Lamps

The TIF180-20-10UF is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

> Good thermal conductive: 2.0 W/mK

>Thickness: 2.0mmT

>hardness:75 shore 00

>Colour: Gray

>RoHS compliant
>UL recognized
>Easy release construction

Applications

>cooling components to the chassis of frame

>High speed mass storage drives

>Heat Sinking Housing at LED-lit BLU in LCD

>LED TV and LED-lit lamps

>RDRAM memory modules

>Micro heat pipe thermal solutions

Typical Properties of TIF180-20-10UF Series
Color	gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	2.7 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	75 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.6 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	2.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

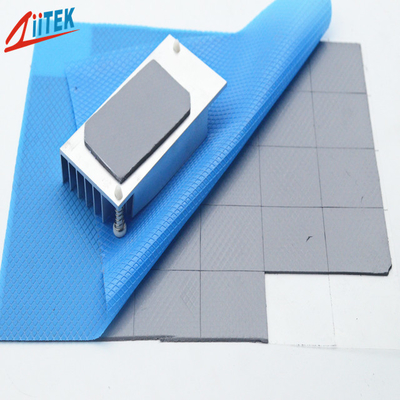

2.0mmT Conductive Silicone Pad Insulation RoHS Compliant 0

FAQ:

Q:Is there promotion price for big buyer?

A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.
