Product Details:
Payment & Shipping Terms:
|
Fire Rating: | 94 V0 | Thickness: | 1.0mmT |
---|---|---|---|
Colour: | Gray | Keyword: | Thermal Gap Pad |
Name: | Dielectric Constant 4.6 MHz Moldability For Complex Parts Conductive Pads For Routers | Hardness: | 75 Shore 00 |
High Light: | fire proof heat insulation silicone pad,1.0mm heat insulation silicone pad,1.0mm silicone thermal pad |
Dielectric Constant 4.6 MHz Moldability for Complex Parts Conductive Pads for Routers

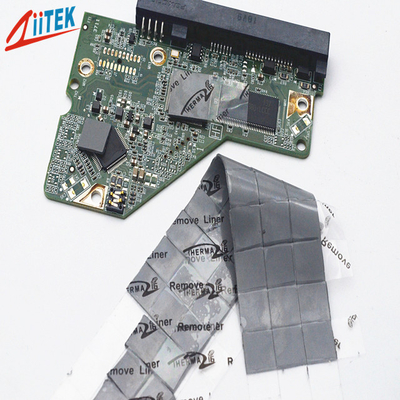

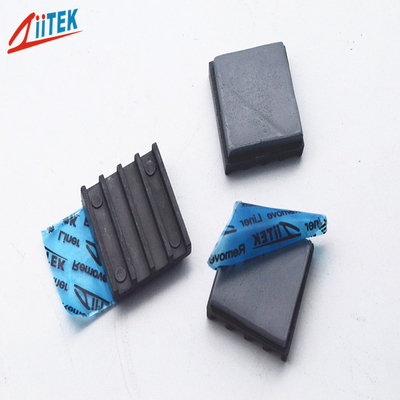

The TIF140-20-10UF thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
TIF100-20-10UF-Datasheet-REV02.pdf
Features
> Good thermal conductive: 2.0 W/mK
>Thickness: 1.0mmT
>hardness:75 shore 00
>Colour: Gray
>Naturally tacky needing no further adhesive coating
>Available in varies thicknesses
>Broad range of hardnesses available
Applications
>Waterproof LED Power
>SMD LED module
>LED Flesible strip, LED bar
>LED PanelLight
>LED floor light
>Routers
Typical Properties of TIF140-20-10UF Series
|
||||
Color
|
gray |
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
20mils / 0.508 mm
|
0.20
|
|||
Specific gravity |
2.7 g/cc |
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
40mils / 1.016 mm
|
0.36
|
|||
Thickness |
1.0mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
60mils / 1.524 mm
|
0.48
|
|||
Hardness
|
75 Shore 00 |
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
80mils / 2.032 mm
|
0.63
|
|||
Outgasing (TML) |
0.35%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
100mils / 2.540 mm
|
0.81
|
|||
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
120mils / 3.048 mm
|
0.93
|
|||
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
140mils /3.556 mm
|
1.08
|
|||
Dielectric Constant
|
4.6 MHz |
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
160mils / 4.064 mm
|
1.20
|
|||
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
180mils / 4.572 mm
|
1.32
|
|||
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
200mils / 5.080 mm
|
1.52
|
|||
Thermal conductivity
|
2.0 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
FAQ:
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
