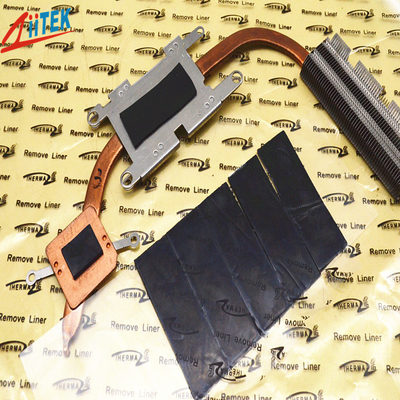

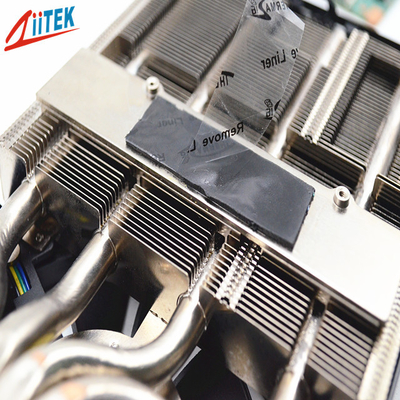

1.5 W/Mk Thermal Gap Pad Performance Silicone For Ad Dc Power Adapters

Large Image : 1.5 W/Mk Thermal Gap Pad Performance Silicone For Ad Dc Power Adapters

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1200-01US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Keyword:	Thermal Gap Pad	Name:	1.5 W/mK Good Performance Silicone Pads For AD-DC Power Adapters
Certification:	ISO9001	Outgassing(TML):	0.35%
Application:	Monitoring The Power Box	Hardness:	20 Shore 00
Highlight:	1.5 w/mk thermal gap pad , ad dc adapters thermal gap pad , 1.5 w/mk thermally conductive gap filler pads

1.5 W/mK good performance silicone pads for AD-DC Power Adapters

The TIF1200-01US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features

> Good thermal conductive: 1.5 W/mK

>Thickness: 5.0mmT

>hardness:20 shore 00

>Colour: Black

>Outstanding thermal performance
>High tack surface reduces contact resistance
>RoHS compliant

Applications

>LED Power Supply

>LED Controller

>LED Ceilinglamp

>Monitoring the Power Box

>AD-DC Power Adapters

>Rainproof LED Power

Typical Properties of TIF1200-01US Series
Color	Black	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	1.9 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	5.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	20 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	2.9 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

1.5 W/Mk Thermal Gap Pad Performance Silicone For Ad Dc Power Adapters 0

FAQ:

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
