3.0mmt Thermal Gap Pad Popular Ultra Soft Silicone For Led Panellight 2.9 Mhz

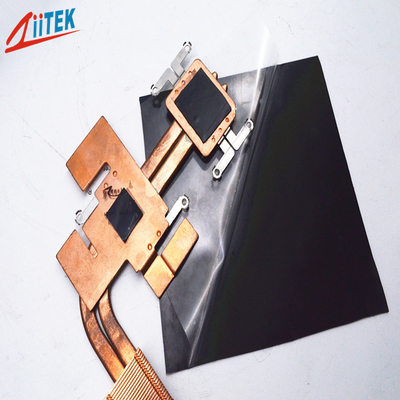

Large Image : 3.0mmt Thermal Gap Pad Popular Ultra Soft Silicone For Led Panellight 2.9 Mhz

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1120-01US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Volume Resistivity:	2.9 MHz	Keyword:	Thermal Gap Pad
Application:	LED PanelLight	Name:	3.0mmT Popular Ultra Soft Silicone Pads For LED PanelLight，2.9 MHz
Part Number:	TIF1120-01US	Colour:	Black
Highlight:	ultra soft silicone thermal gap pad , thermal gap pad 3.0mmt , thermally conductive gap filler pads 3.0mmt

3.0mmT popular ultra soft silicone pads for LED PanelLight,2.9 MHz

The TIF1120-01US thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features

> Good thermal conductive: 1.5 W/mK

>Thickness: 3.0mmT

>hardness:20 shore 00

>Colour: Black

>RoHS compliant
>UL recognized
>Easy release construction

Applications

>Waterproof LED Power

>SMD LED module

>LED Flesible strip, LED bar

>LED PanelLight

>LED floor light

>Routers

Typical Properties of TIF1120-01US Series
Color	Black	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	1.9 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	3.0mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	20 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	2.9 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

3.0mmt Thermal Gap Pad Popular Ultra Soft Silicone For Led Panellight 2.9 Mhz 0

FAQ:

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
