Rohs Compliant Silicone Thermal Gap Filler Sheets For High Speed Mass Storage Drives

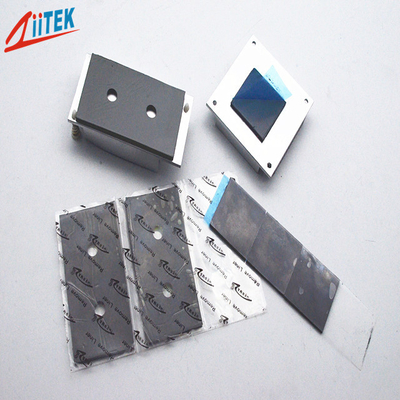

Large Image : Rohs Compliant Silicone Thermal Gap Filler Sheets For High Speed Mass Storage Drives

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1100-40-11US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Denisty:	3.15g/cm3	Certifications:	UL And RoHs
Hardness:	20 Shore 00	Colour:	Gray
Keyword:	Thermal Gap Pad	Name:	Rohs Compliant Silicone Thermal Gap Filler Sheets For High Speed Mass Storage Drives
Highlight:	rohs thermal gap filler , high denisty thermal gap filler , thermal gap filler 4.0 w mk

low cost RoHS compliant silicone sheets for High speed mass storage drives

The TIF1100-40-11US thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features

> Good thermal conductive: 4.0 W/mK

>Thickness:2.5mmT

>hardness:20 shore 00

>Colour: Gray

>Moldability for complex parts

>Soft and compressible for low stress applications

>Naturally tacky needing no further adhesive coating

Applications

>Waterproof LED Power

>SMD LED module

>LED Flesible strip, LED bar

>LED PanelLight

>LED floor light

>Routers

Typical Properties of TIF1100-40-11US Series
Color	gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Denisty	3.15g/cm³	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	20 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgasing (TML)	0.40%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.0 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	6.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	4.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Rohs Compliant Silicone Thermal Gap Filler Sheets For High Speed Mass Storage Drives 0

FAQ:

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
