Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 1.8 W/m-K |
---|---|---|---|
Hardness: | 18 Shore 00 | Density: | 2.5 G/cc |
Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
Highlight: | telecommunication hardware thermal gap pad,1.8w mk thermal gap pad,thermal pad 1.8w mk |
high cost-effective thermally conductive silicone rubber, for Telecommunication hardware,-40 to 160℃,2.5 g/cc

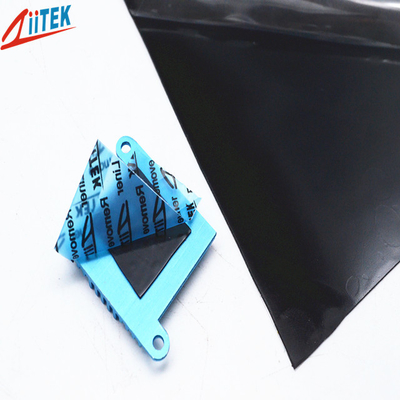

The TIF1200-18-01US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
TIF100-18-01US-Specification-sheet.pdf
Features
> Good thermal conductive: 1.8 W/mK
>Thickness:5.0mmT
>hardness:18 shore00
>Colour: black
>Easy release construction
>Electrically isolating
>High durability
Applications
>power supply

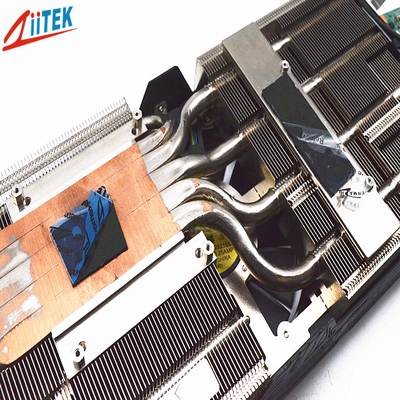

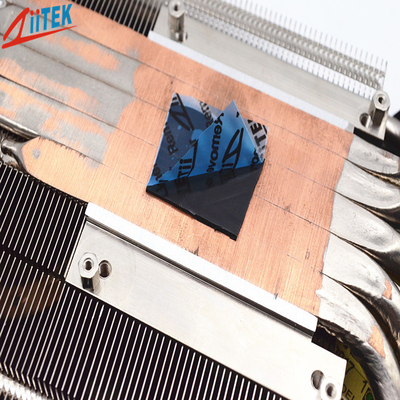

>Heat pipe thermal solutions
>Memory Modules
>Mass storage devices
>LED Ceilinglamp
>Monitoring the Power Box
>AD-DC Power Adapters
>Rainproof LED Power
Typical Properties of TIF1200-18-01US Series
|
||||
Color
|
black
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
20mils / 0.508 mm
|
0.20
|
|||
Specific gravity |
2.5g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
40mils / 1.016 mm
|
0.36
|
|||
Thickness |
5.0mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
60mils / 1.524 mm
|
0.48
|
|||
Hardness
|
18 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
80mils / 2.032 mm
|
0.63
|
|||
Outgassing(TML)
|
0.45%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
100mils / 2.540 mm
|
0.81
|
|||
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
120mils / 3.048 mm
|
0.93
|
|||
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
140mils /3.556 mm
|
1.08
|
|||
Dielectric Constant
|
4.5 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
160mils / 4.064 mm
|
1.20
|
|||
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
180mils / 4.572 mm
|
1.32
|
|||
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
200mils / 5.080 mm
|
1.52
|
|||
Thermal conductivity
|
1.8 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
