Product Details:
Payment & Shipping Terms:
|
| Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 1.8 W/m-K |
|---|---|---|---|
| Hardness: | 18 Shore 00 | Density: | 2.5 G/cc |
| Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
| High Light: | 2.5 G/Cc thermal gap filler,UL Recognized Thermal Conductive Gap Filler,0.5mm Thermal Conductive Gap Filler |
||

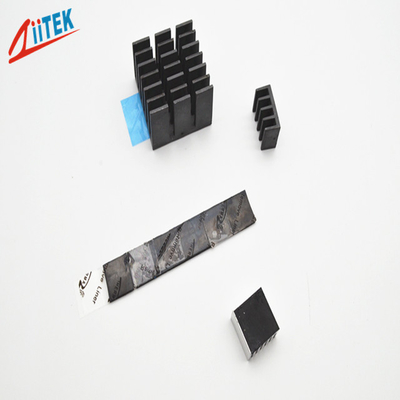

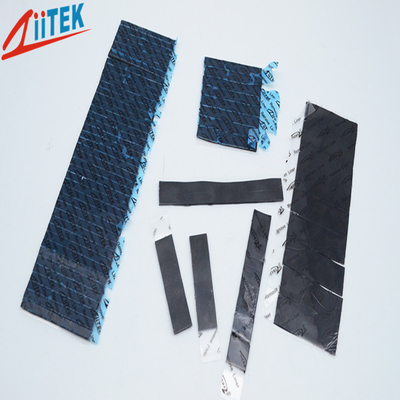

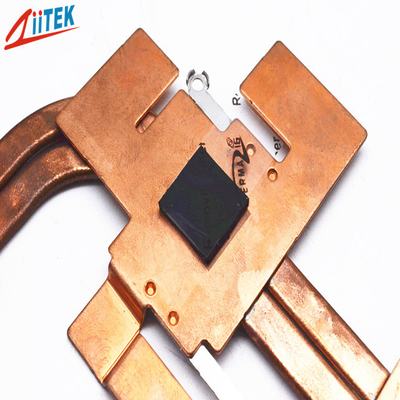

0.5mmT UL recognized thermal conductive gap filler For Audio and video components,2.5 g/cc ,18 Shore 00
The TIF120-18-01US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
TIF100-18-01US-Specification-sheet.pdf
Features
> Good thermal conductive: 1.8 W/mK
>Thickness:0.5mmT
>hardness:18 shore00
>Colour: black
>Soft and compressible for low stress applications
>Naturally tacky needing no further adhesive coating
>Electrically isolating
>High durability
Applications
>Heat Sinking Housing at LED-lit BLU in LCD
>LED TV and LED-lit lamps
>RDRAM memory modules
>IT infrastructure
>GPS navigation and other portable devices
>CD-Rom, DVD-Rom cooling
|
Typical Properties of TIF120-18-01US Series
|
||||
|
Color
|
black
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
2.5g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
0.5mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
18 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
|
Outgassing(TML)
|
0.45%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4.5 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
1.8 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
