4.5mmT 20±5 Shore 00 Thermal Conductive Pad For Automotive Engine Control Units

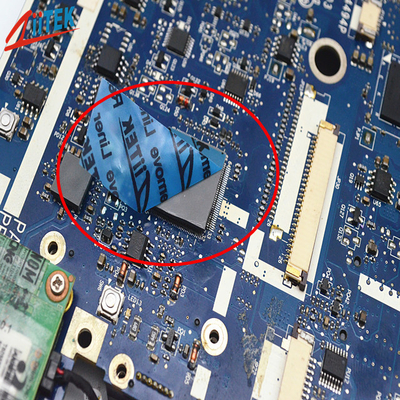

Large Image : 4.5mmT 20±5 Shore 00 Thermal Conductive Pad For Automotive Engine Control Units

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1180-30-11US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Heat Capacity:	1 L/g-K	Thermal Conductivity:	3.0 W/m-K
Hardness:	20±5 Shore 00	Density:	3.0 G/cc
Continuos Use Temp:	-40 To 160℃	Flame Rating:	94 V0
Highlight:	94 V0 Thermal Conductive Pad , 4.5mmT Thermal Conductive Pad , Automotive Engine Control Units Thermal Pad

4.5mmT,20±5 Shore 00 Good performance thermal conductive pad for Automotive engine control units,

The TIF1180-30-11US is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF1180-30-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive: 3.0 W/mK

>Thickness:4.5mmT

>hardness:20±5 shore00

>Colour: gray

>Moldability for complex parts

>Outstanding thermal performance

>Electrically isolating

>High durability

Applications

>Automotive engine control units

>Telecommunication hardware

>Handheld portable electronics

>IT infrastructure

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

Typical Properties of TIF1180-30-11US Series
Color	gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	3.0g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	4.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	20±5 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgassing(TML)	0.35%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.0 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-cm	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	3.0 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

4.5mmT 20±5 Shore 00 Thermal Conductive Pad For Automotive Engine Control Units 0

FAQ

Q:Is there promotion price for big buyer?

A:Yes, we do have promotion price for big buyer. Please send us email for inquiry.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
