Product Details:
Payment & Shipping Terms:
|
| Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 3.0 W/m-K |
|---|---|---|---|
| Hardness: | 12 Shore 00 | Density: | 2.9 G/cc |
| Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
| High Light: | ultra soft heat sink pad,LED Ceiling Lamp heat sink pad,Gray Soft heat sink insulation pad |
||

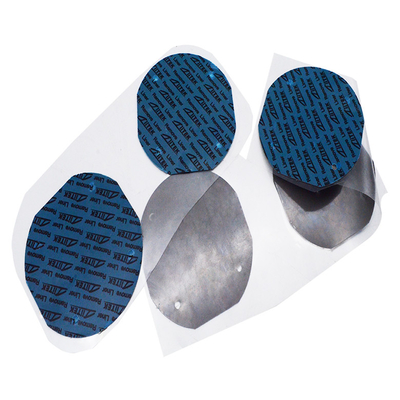

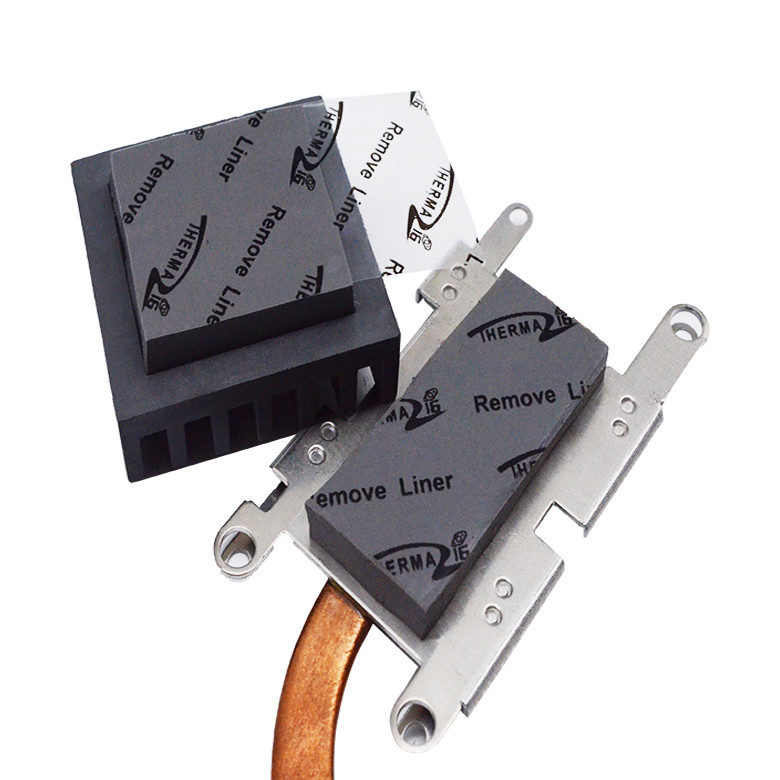

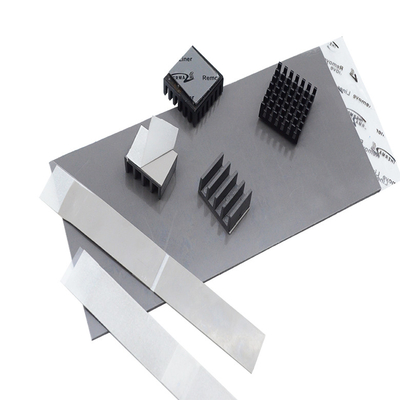

The gray ultra soft heat sink pad for LED Ceilinglamp,Electrically isolating:dielectric Breakdown Voltage over 5500
The TIF1140-30-11ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF1140-30-11ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
TIF100-30-11ES-Datasheet-REV02.pdf
Features
> Good thermal conductive: 3.0 W/mK
>Thickness:3.5mmT
>hardness:12 shore00
>Colour: gray
>Soft and compressible for low stress applications
>Naturally tacky needing no further adhesive coating
Applications
>LED Ceilinglamp
>Monitoring the Power Box
>AD-DC Power Adapters
>Semiconductor automated test equipment (ATE)
>CPU
>display card
|
Typical Properties of TIF1140-30-11ES Series
|
||||
|
Color
|
gray
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
2.9g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
3.5mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
12 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
|
Outgassing(TML)
|
0.35%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
2.9 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
3.0 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
