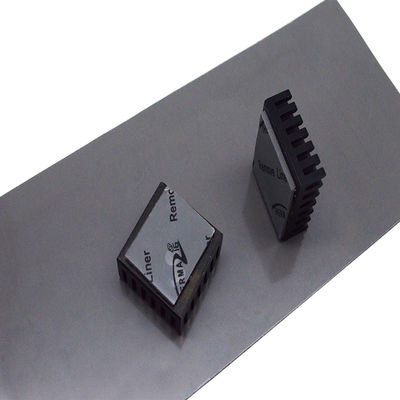

3.0 W/M-K Heat Sink Pad 12 Shore 00 For Micro Heat Pipe Thermal Solutions

3.0 W/M-K Heat Sink Pad 12 Shore 00 For Micro Heat Pipe Thermal Solutions
3.0 W/M-K Heat Sink Pad 12 Shore 00 For Micro Heat Pipe Thermal Solutions
video play

Large Image :  3.0 W/M-K Heat Sink Pad 12 Shore 00 For Micro Heat Pipe Thermal Solutions

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF120-30-11ES
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Heat Capacity: 1 L/g-K Thermal Conductivity: 3.0 W/m-K
Hardness: 12 Shore 00 Density: 2.9 G/cc
Continuos Use Temp: -40 To 160℃ Flame Rating: 94 V0
High Light:

94 V0 heat sink pad

,

heat sink pad 12 Shore 00

,

Micro Heat Pipe Thermal pad

3.0 W/m-K high cost-effective heat sink pad 12 Shore 00 for Micro heat pipe thermal solutions



     The TIF120-30-11ES is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.





TIF100-30-11ES-Datasheet-REV02.pdf


Features

> Good thermal conductive: 3.0 W/mK

>Thickness:0.5mmT

>hardness:12 shore00

>Colour: gray

>Fiberglass reinforced for puncture, shear and tear resistance

>High durability

>Soft and compressible for low stress applications


Applications

>Micro heat pipe thermal solutions

>Automotive engine control units

>Telecommunication hardware

>Mass storage devices

>Automotive electronics

>Set top boxes





Typical Properties of TIF120-30-11ES Series
Color
 gray
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

2.9g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
0.5mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
12 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Outgassing(TML)
0.35%
ASTM E595
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
2.9 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
3.0 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470



























































Company Profile



Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.




3.0 W/M-K Heat Sink Pad 12 Shore 00 For Micro Heat Pipe Thermal Solutions 0

Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract



FAQ:

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.



Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
