Thermal Gap Filler 1.9 G/Cm3 12±5 Shore 00 For Heat Pipe Thermal Solutions

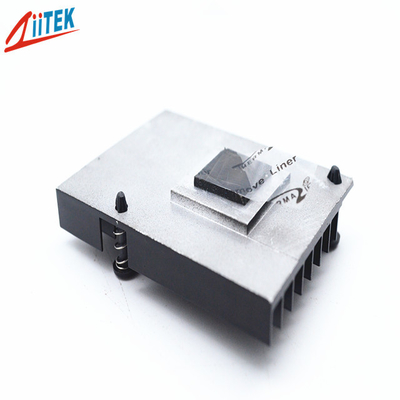

Large Image : Thermal Gap Filler 1.9 G/Cm3 12±5 Shore 00 For Heat Pipe Thermal Solutions

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF1100-01ES

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 work days
Supply Ability:	100000pcs/day

Contact Now

Detailed Product Description

Heat Capacity:	1 L/g-K	Thermal Conductivity:	1.5 W/m-K
Hardness:	12±5 Shore 00	Density:	1.9 G/cm3
Continuos Use Temp:	-40 To 160℃	Flame Rating:	94 V0
Highlight:	Thermal Gap Filler 1.9 G/Cm3 , Thermal Gap Filler 12±5 Shore 00 , Heat Pipe Thermal Solutions thermal filler

low cost and popular thermal gap filler,1.9 g/cm3,12±5 Shore 00 for Heat pipe thermal solutions

The TIF1100-01ES thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features

> Good thermal conductive: 1.5 W/mK

>Thickness:2.5mmT

>hardness:12±5 shore00

>Colour:drak gray

>Fiberglass reinforced for puncture, shear and tear resistance

>Moldability for complex parts

Applications

>Semiconductor automated test equipment (ATE)

>display card

>mainboard/mother board

>Heat pipe thermal solutions

>Memory Modules

>Mass storage devices

Typical Properties of TIF1100-01ES Series
Color	drak gray	Visual	Composite Thickness	Thermal Impedance@10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific gravity	1.9 g/cm³	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness	2.5mmT	***	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	12±5 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Outgassing(TML)	0.30%	ASTM E595	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	2.9 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470
