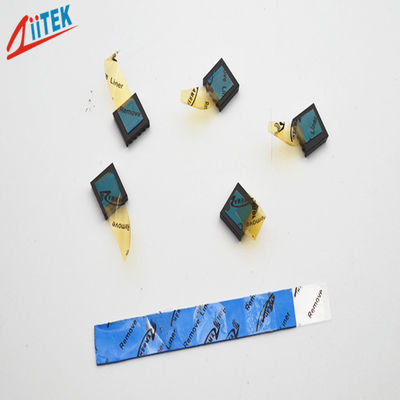

1.2w/MK high cost-effective thermal conductive gap pad, for GPS navigation and other portable devices
The TIF1140-12-05ES is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF1140-12-05ES is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
TIF100-12-05ES-Series-Datasheet.pdf
Features:
> Good thermal conductive: 1.2 W/mK
>Thickness:3.5mmT
>hardnesses :12±5 (Shore 00)
>Moldability for complex parts
>Soft and compressible for low stress applications
>UL recognized
Applications:
>GPS navigation and other portable devices
>CD-Rom, DVD-Rom cooling
>LED Power Supply
>RDRAM memory modules
>Micro heat pipe thermal solutions
>Automotive engine control units
|
Typical Properties of TIF1140-12-05ES Series
|
||||
|
Color
|
blue |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.55 |
| 20mils / 0.508 mm |
0.82 |
|||
|
desity
|
2.0 g/cm3 |
ASTM D297 |
30mils / 0.762 mm |
1.01 |
|
40mils / 1.016 mm |
1.11 |
|||
| Thickness |
3.5mmT |
*** |
50mils / 1.270 mm |
1.27 |
|
60mils / 1.524 mm |
1.45 |
|||
|
Hardness
|
12±5 (Shore 00) | ASTM 2240 |
70mils / 1.778 mm |
1.61 |
|
80mils / 2.032 mm |
1.77 |
|||
| Tensile Strength |
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.91 |
|
100mils / 2.540 mm |
2.05 |
|||
|
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
2.16 |
|
120mils / 3.048 mm |
2.29 |
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC | ASTM D149 |
130mils / 3.302mm |
2.44 |
|
140mils / 3.556 mm |
2.56 |
|||
|
Dielectric Constant
|
4.5MHz | ASTM D150 |
150mils / 3.810 mm |
2.67 |
|
160mils / 4.064 mm |
2.77 |
|||
|
Volume Resistivity
|
1.0X1012 Ohm-meter |
ASTM D257 |
170mils / 4.318 mm |
2.89 |
|
180mils / 4.572 mm |
2.98 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
3.05 |
|
200mils / 5.080 mm |
3.14 |
|||
|
Thermal conductivity
|
1.2 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
